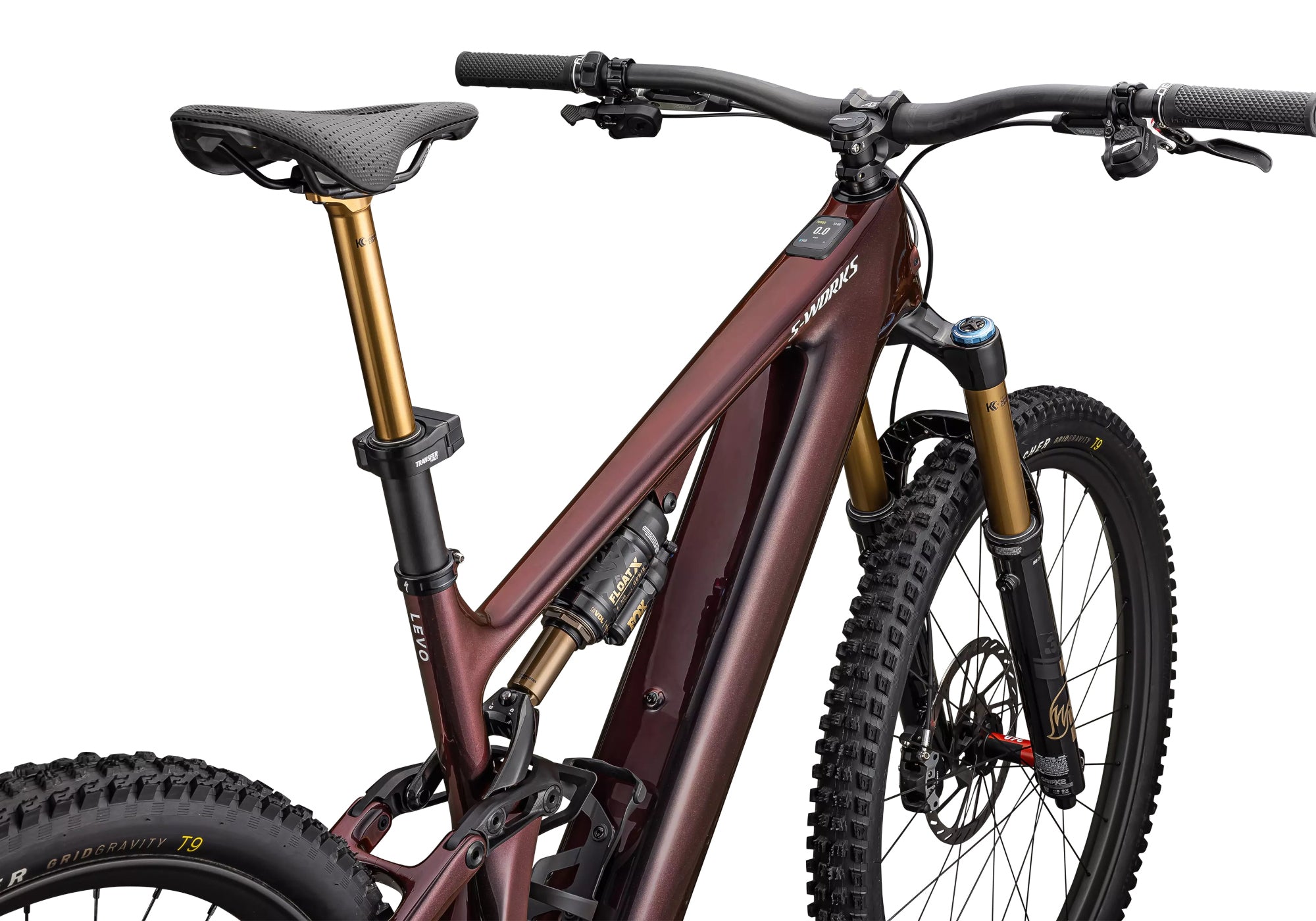

Specialized Turbo Levo 4 S-Works Red

Specialized Turbo Levo 4 S-Works Red
Specialized Turbo Levo 4 S-Works Red Specialized Turbo Levo 4 S-Works Red Specialized Turbo Levo 4 S-Works Red Specialized Turbo Levo 4 S-Works Red Specialized Turbo Levo 4 S-Works Red Specialized Turbo Levo 4 S-Works Red Specialized Turbo Levo 4 S-Works Red Specialized Turbo Levo 4 S-Works Red Specialized Turbo Levo 4 S-Works Red

Product Details

Turbo Levo 4, Where Super Meets Natural. SuperNatural Power, Ride, and Range.

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.

  • Use: Full Power E-MTB Trail
  • E-System: S-Works 3.1 Motor w/ 720 Watts & 111 Nm, 840 Wh battery, up to 4.75 hour range
  • Frame: FACT 11m Carbon w/ Carbon Link, Geo Adj & SWAT Storage
  • Suspension: Front: 160mm FOX 38 FACTORY GRIPX2; Rear: Rear: 150mm GENIE - FOX FLOAT X Factory
  • Drivetrain: SRAM XX Eagle T-Type AXS
  • Wheels: Roval Traverse HD Carbon / DT 240 DEG

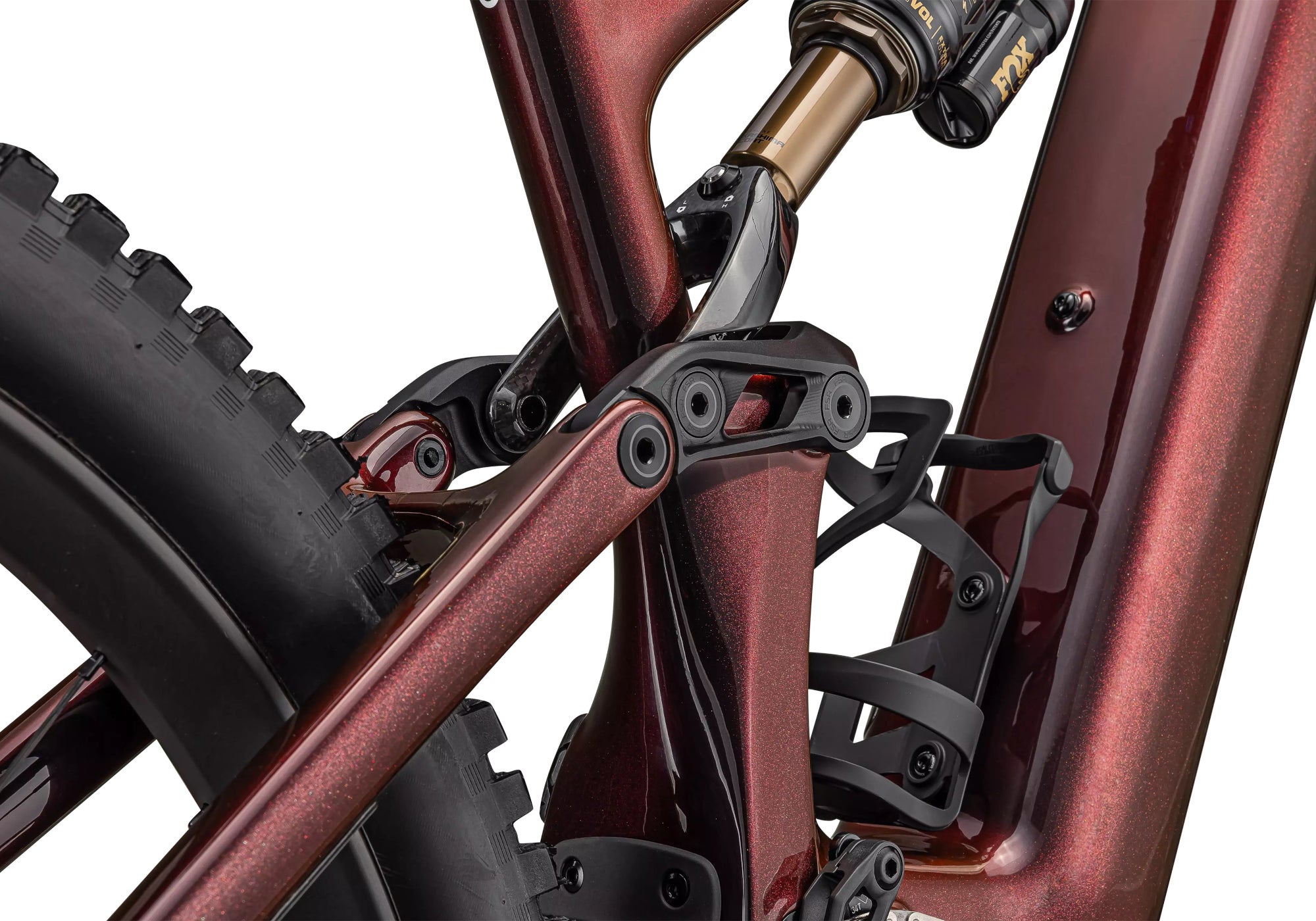

FRAME All new S-Works Levo 4 frame with carbon shock extension, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm
FORK FOX FLOAT 38 Factory, GRIP X2 damper, HS and LS rebound and compression adjustment, 15x110mm axle, 44mm offset, 160mm of travel

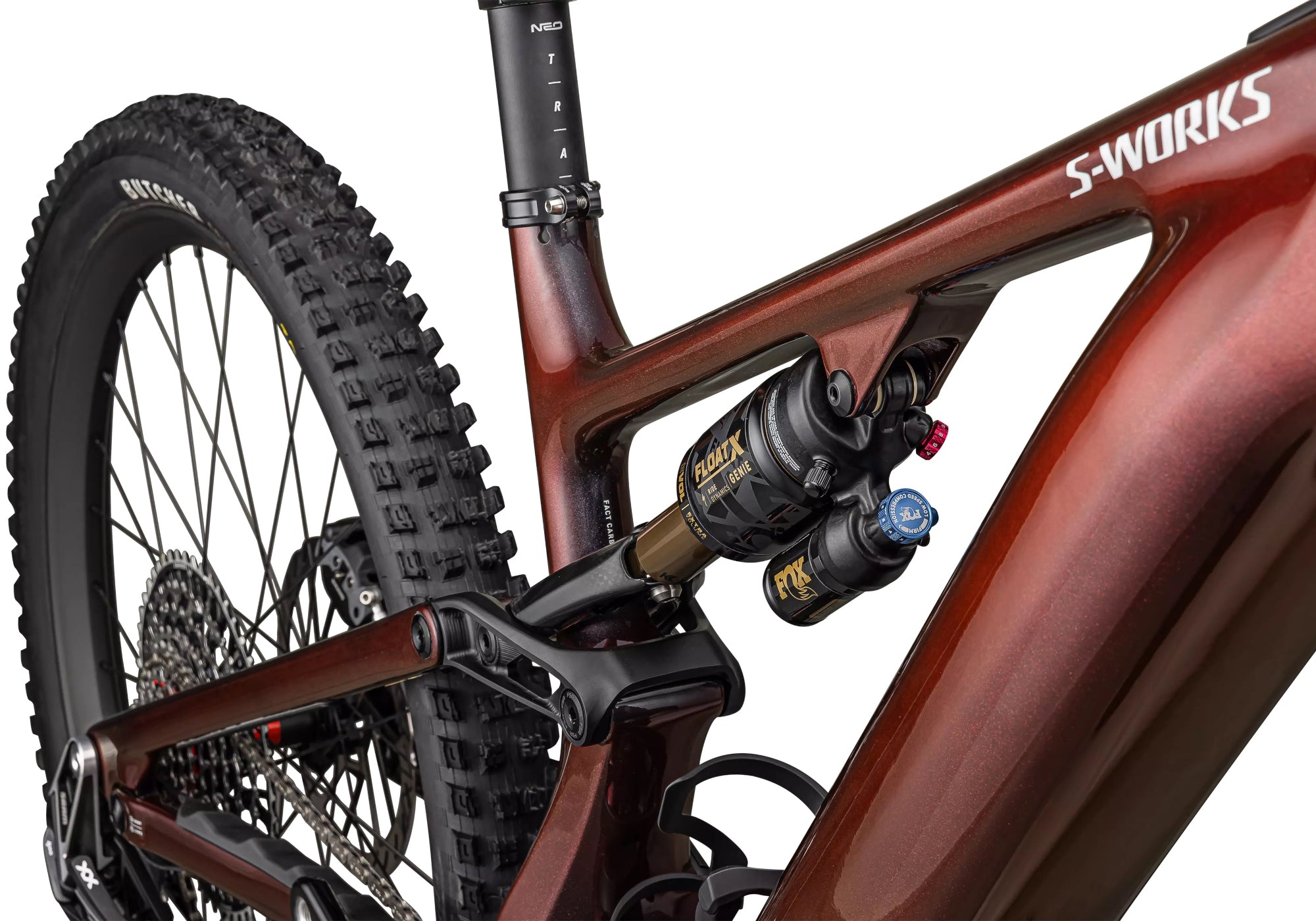

REAR SHOCK FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm
FRONT WHEEL Roval Traverse HD 29", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG, 15x110mm, 28h
REAR WHEEL Roval Traverse HD 27.5", hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG, 12x148mm, 32h
FRONT TYRE Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.4"
REAR TYRE Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.4"
CRANKSET SRAM XX Carbon crank, 55mm Chainline, ISIS interface, 160mm
CHAINRINGS SRAM 34t T-Type chainring, 104 BCD, steel
SHIFT LEVERS SRAM AXS POD ULTIMATE with DISCRETE CLAMP
REAR DERAILLEUR SRAM XX Eagle AXS Transmission Derailleur
CASSETTE SRAM XX Eagle Transmission Cassette, 12spd, 10-52t
CHAIN SRAM XX EagleTransmission Flattop Chain
FRONT BRAKE SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor
REAR BRAKE SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor

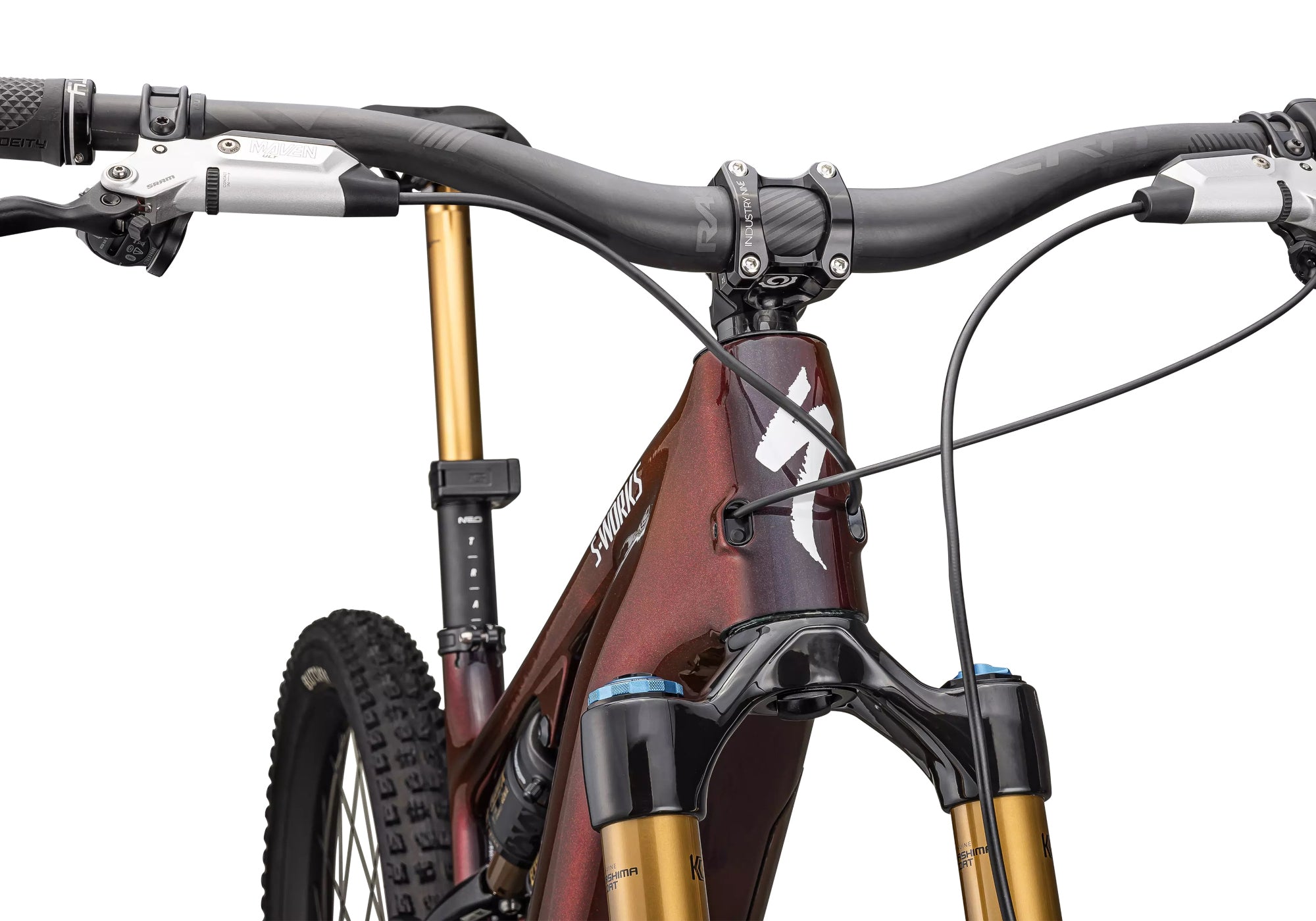

HANDLEBARS RaceFace Era Carbon, riser bar, 5-degree upsweep, 8-degree backsweep, S2:20mm Rise, S3-S6:40mm Rise, 800mm
GRIPS Deity Lockjaw grips
STEM Industry 9 Mountain stem, 35mm clamp, 40mm
SADDLE Specialized Power Pro Mirror w/hollow Ti rails
SEATPOST FOX Transfer NEO Factory, 34.9, S2: 150mm, S3: 175mm, S4-S6: 200mm

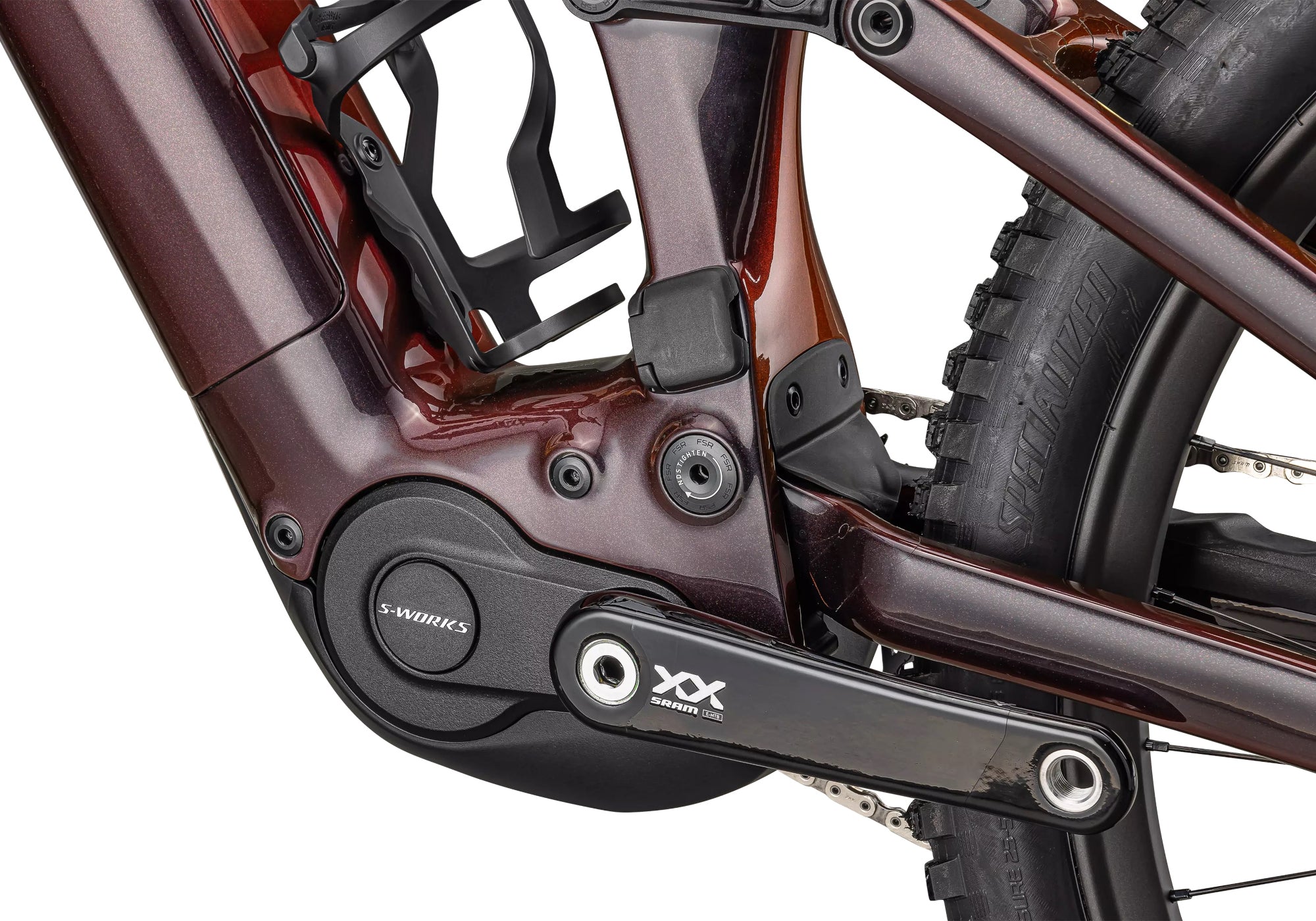

MOTOR All New Specialized 3.1 S-Works motor, 111Nm torque, 720W power

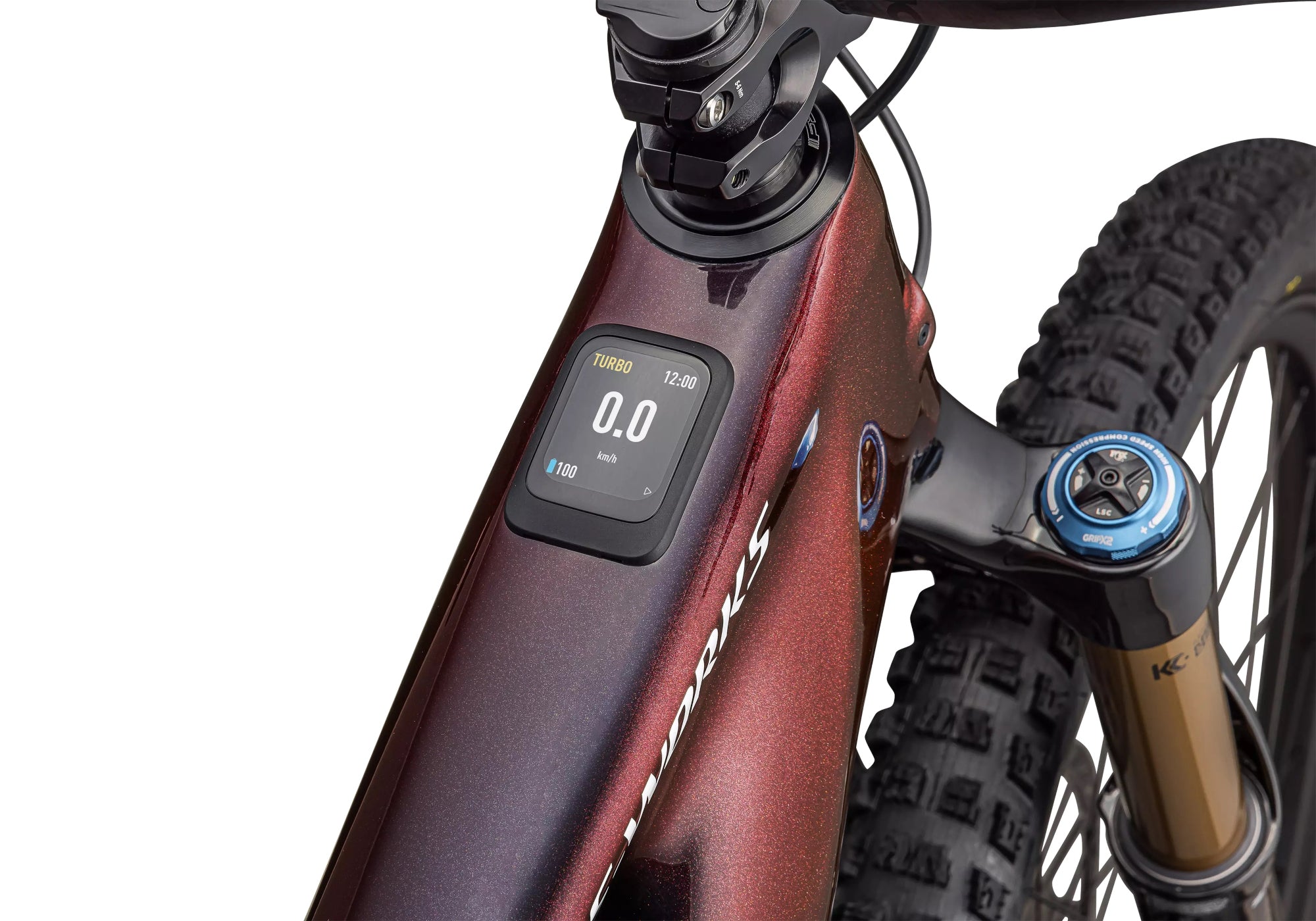

UI/REMOTE All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app
BATTERY 840wh battery
CHARGER Specialized 4amp charger
WIRING HARNESS Custom Specialized wiring harness
Accessories SWAT internal downtube storage
Weight 23.68 kg, Size S4
Specifications subject to change without notice.
[mm] S2 S3 S4 S5 S6
BB Drop 29.5 29.5 29.5 29.5 29.5
BB Height 350 350 350 350 350
Bike Standover Height 753 754 753 758 761
Chainstay Length 435 435 435 435 435
Crank Length 155 155 155 155 155
Fork Length (full) 577 577 577 577 577
Fork Rake/Offset 44 44 44 44 44
Front Center 765 789 820 851 888
Handlebar Width 780 800 800 800 800
Headtube Angle 64.5 64.5 64.5 64.5 64.5
Headtube Length 105 103 117 132 149
Max Seatpost Insertion 274 289 313 317 357
Min Seatpost Insertion 80 80 80 80 80
Reach 435 455 480 505 535
Saddle Width 155 143 143 143 143
Seat Tube Angle 77 77 77 77 77
Seat Tube Length 390 405 425 445 465
Seatpost Length 125 170 190 190 190
Stack 618 626 638 652 667
Stem Length 40 40 40 40 40
Trail 132 132 132 132 132
Wheelbase 1200 1223 1254 1286 1323

About Specialized
As their motto says, “Made for riders, by riders”. Specialized made the first production mountain bike in 1974, and since then they have been industry leaders. From lightweight carbon race bikes, innovative kids bikes, class leading e-bikes and tyres & accessories, Specialized continue to push boundaries.

Product Code 95224-0103
