Amflow PR Carbon

Amflow PR Carbon
Amflow PR Carbon Amflow PR Carbon Amflow PR Carbon Amflow PR Carbon Amflow PR Carbon Amflow PR Carbon Amflow PR Carbon Amflow PR Carbon

Product Details

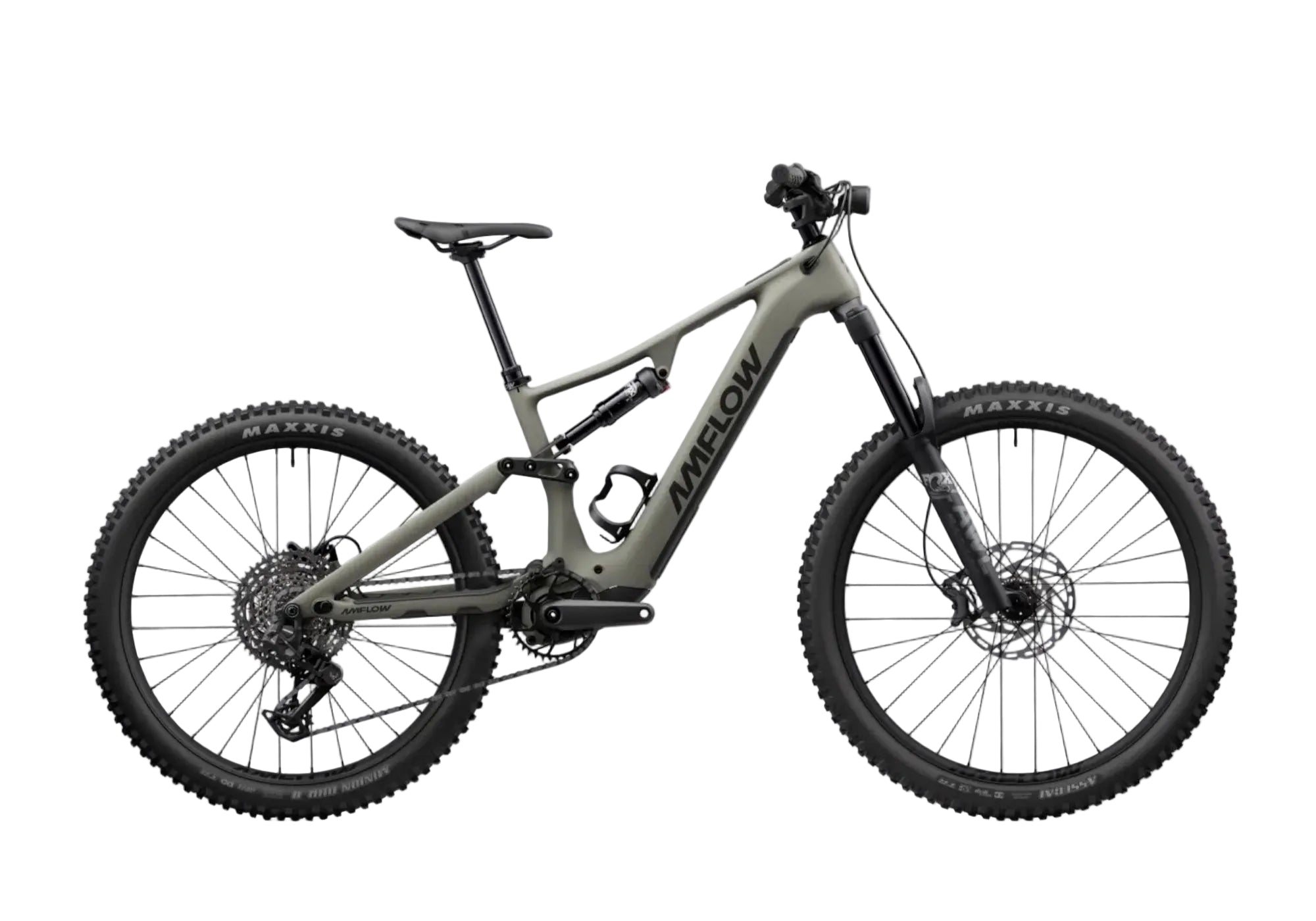

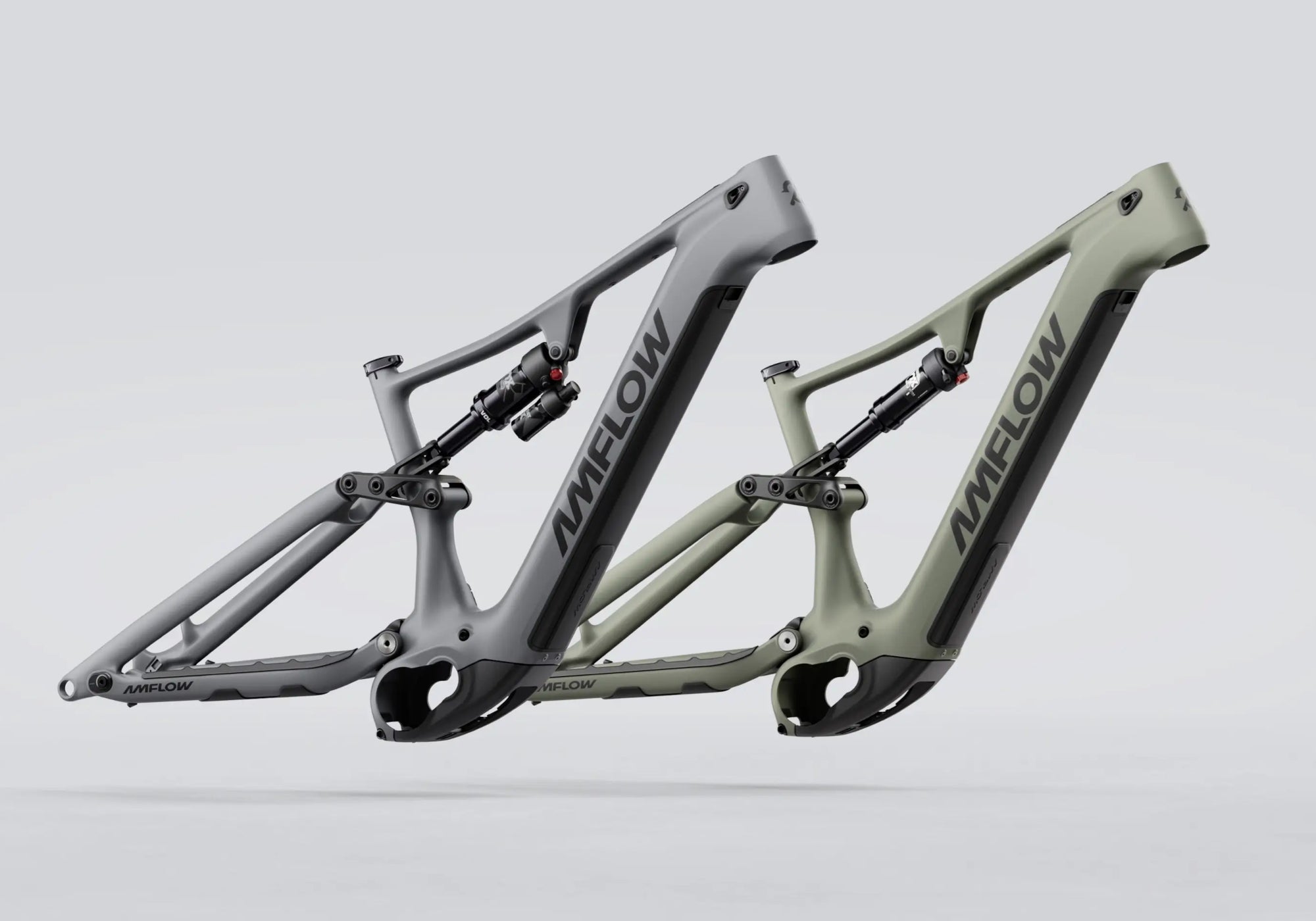

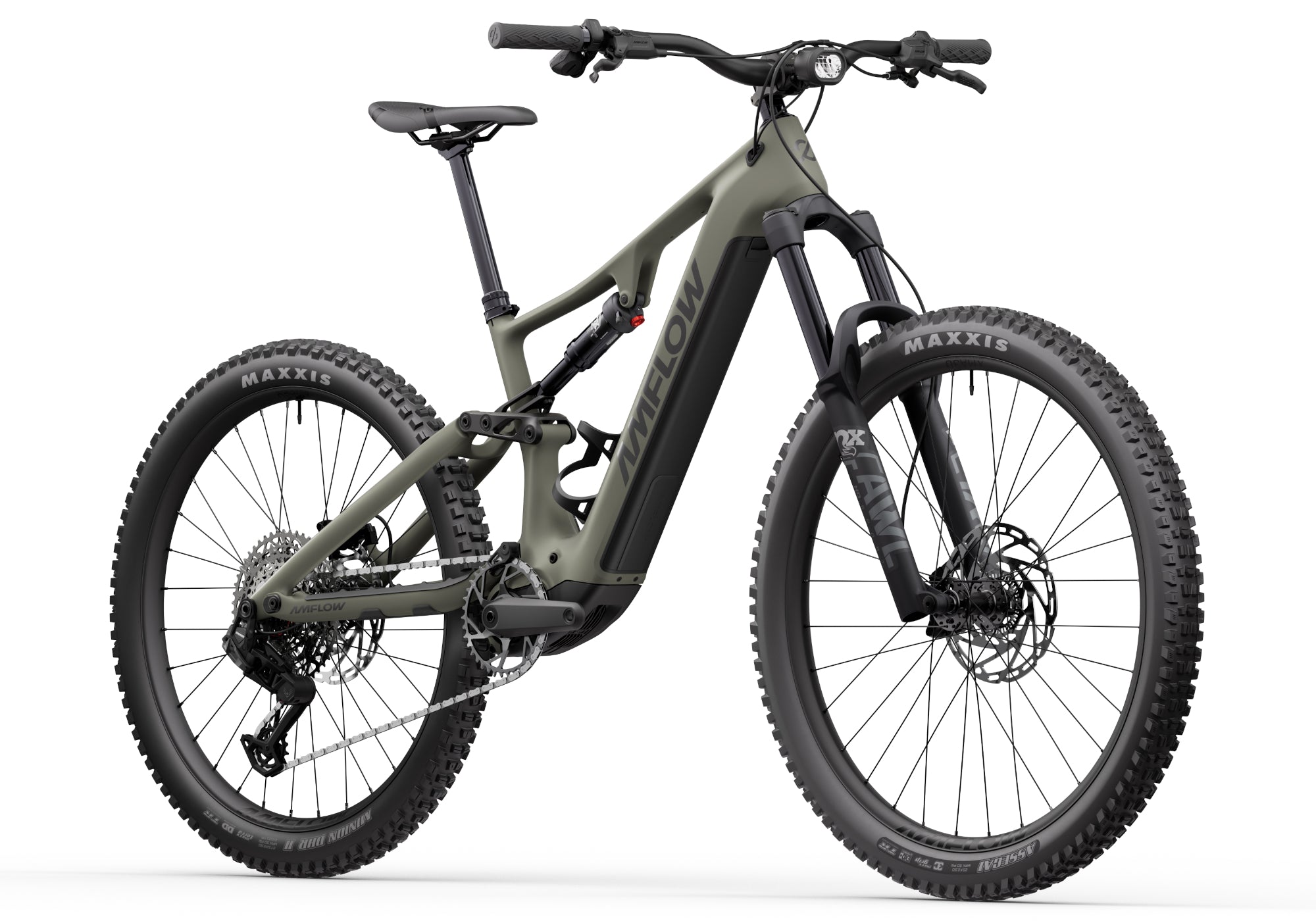

Amflow PR combines striking aesthetics with a full-carbon frame and equipped with an Avinox Drive Unit. Swappable battery for extended rides gives you the freedom to ride farther and push your limits in style.

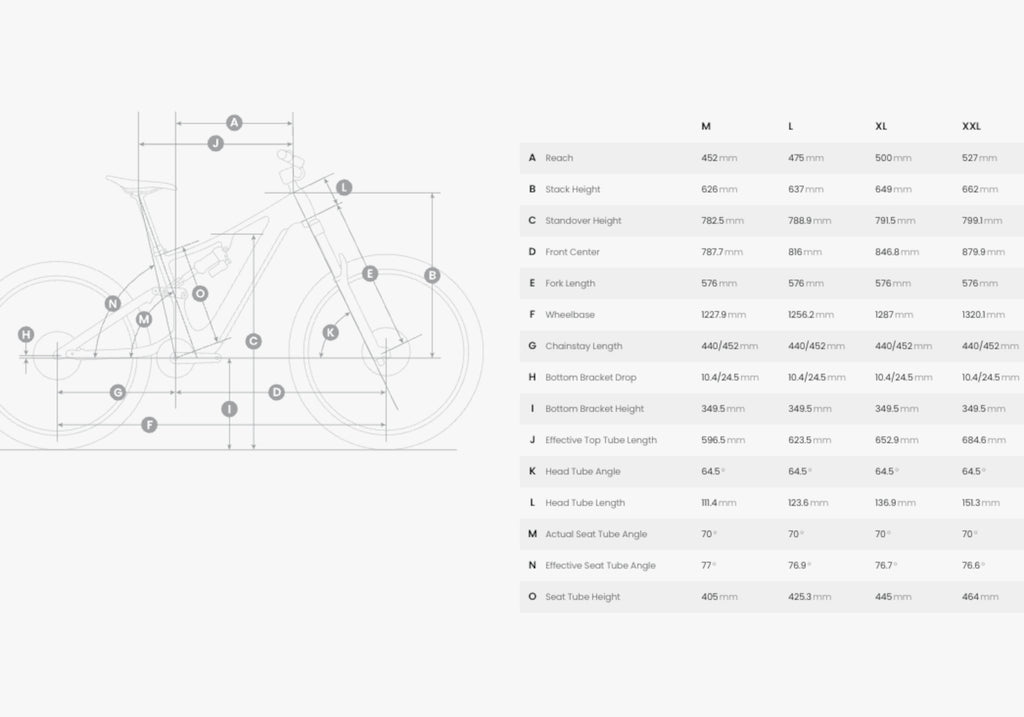

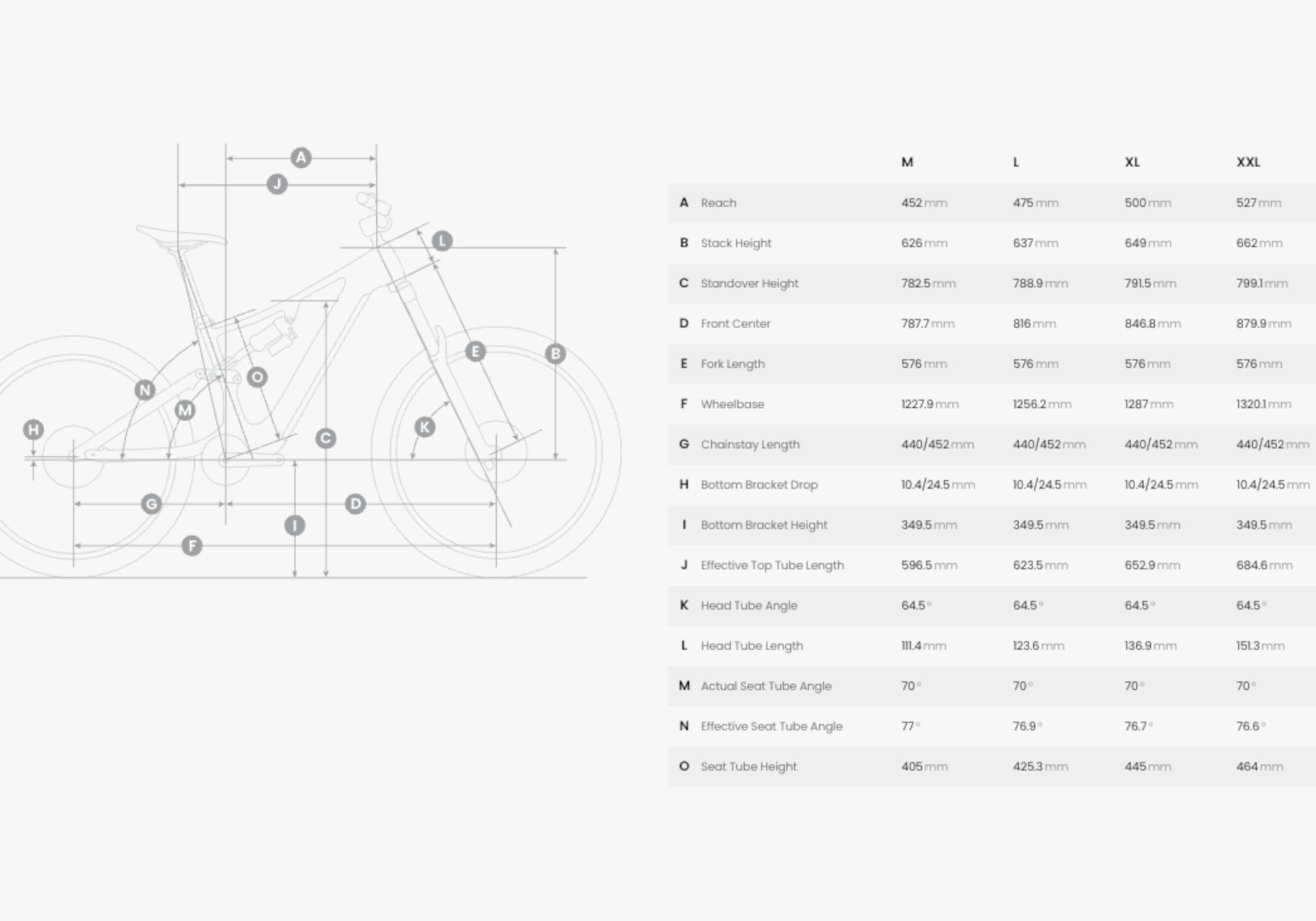

Amflow PR features a cutting-edge progressive geometry. With precision fine-tuning available for the head tube angle (5 positions), bottom bracket height (2 positions), and chainstay length (4 positions), it offers up to 40 geometric combinations.

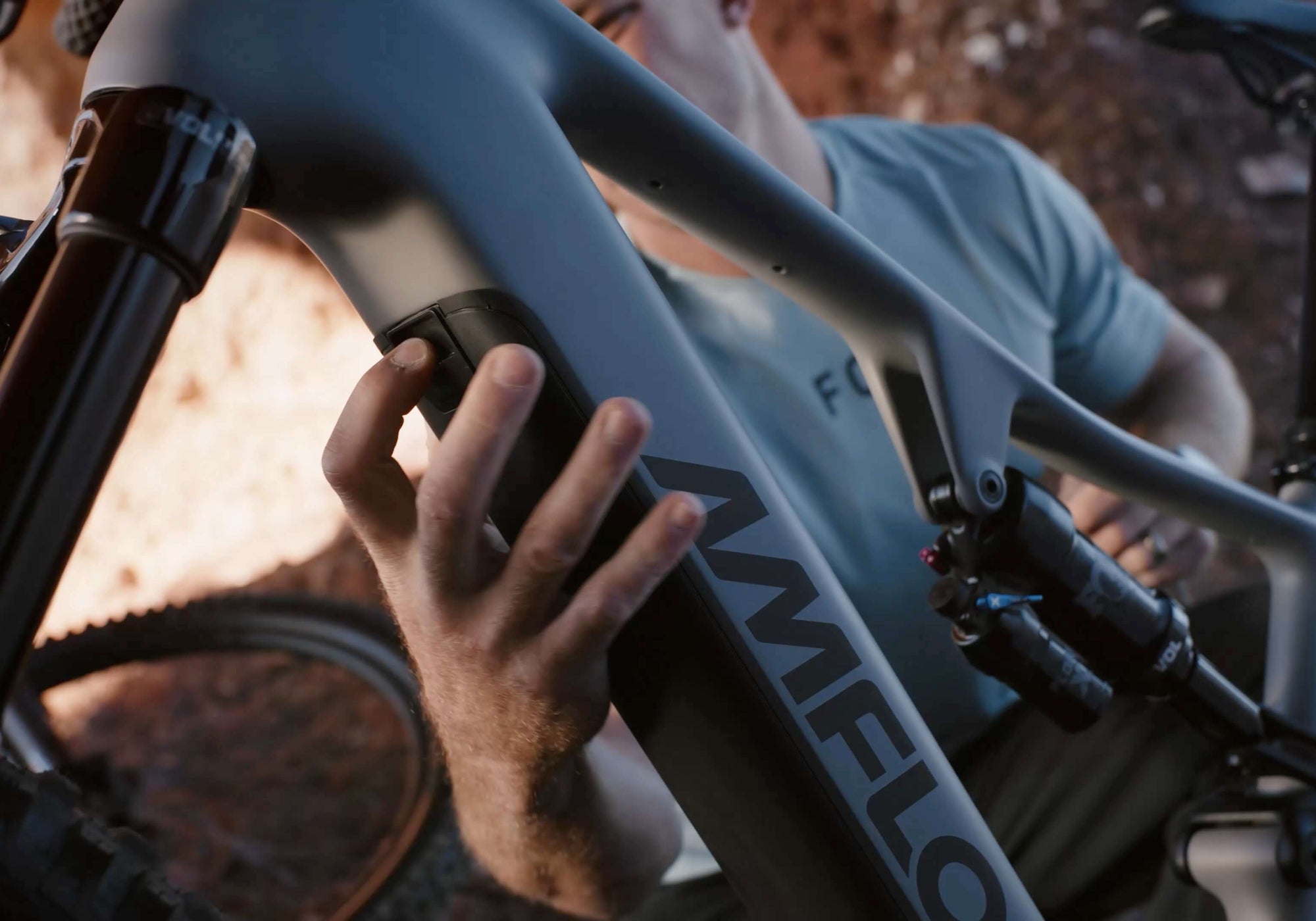

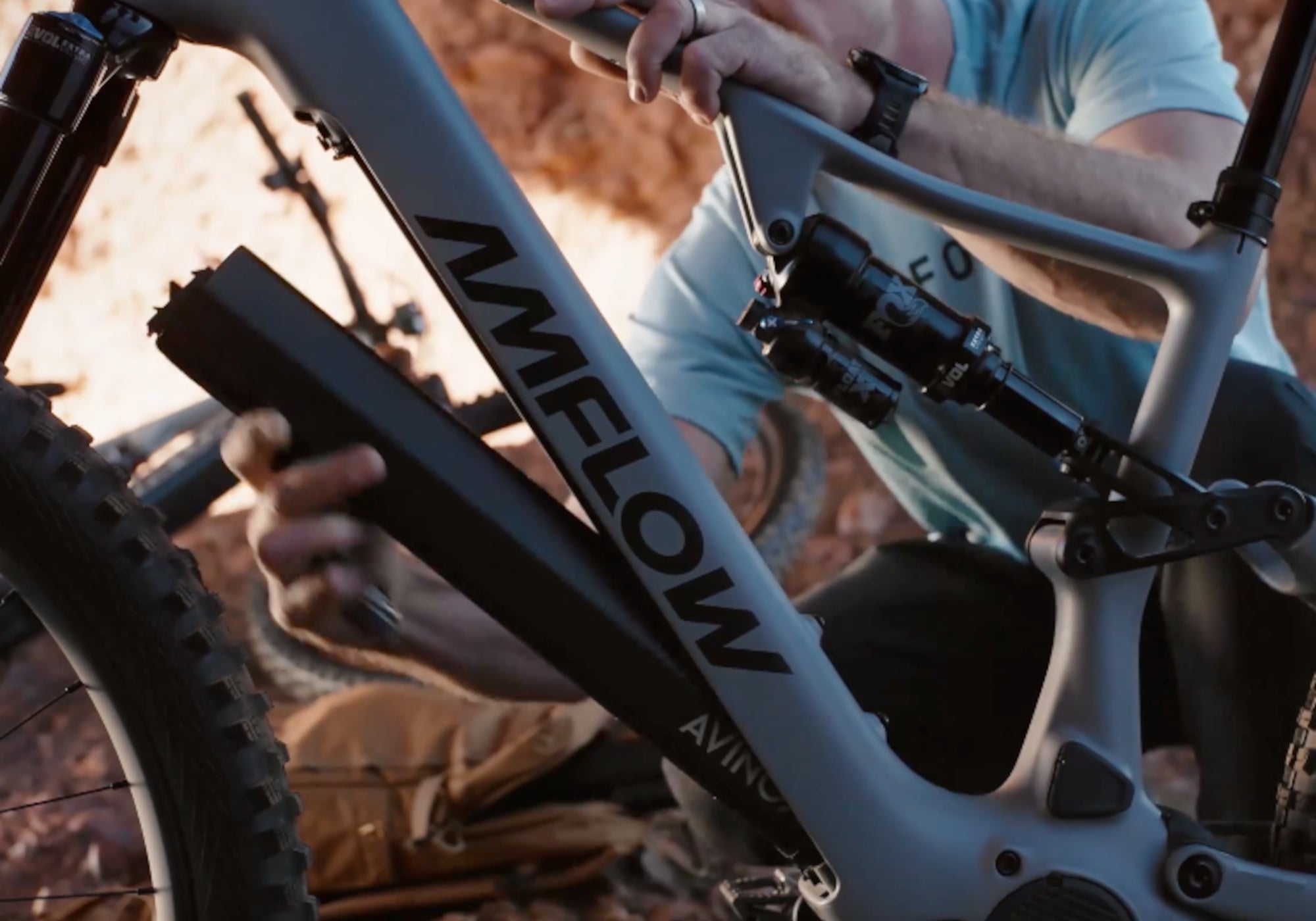

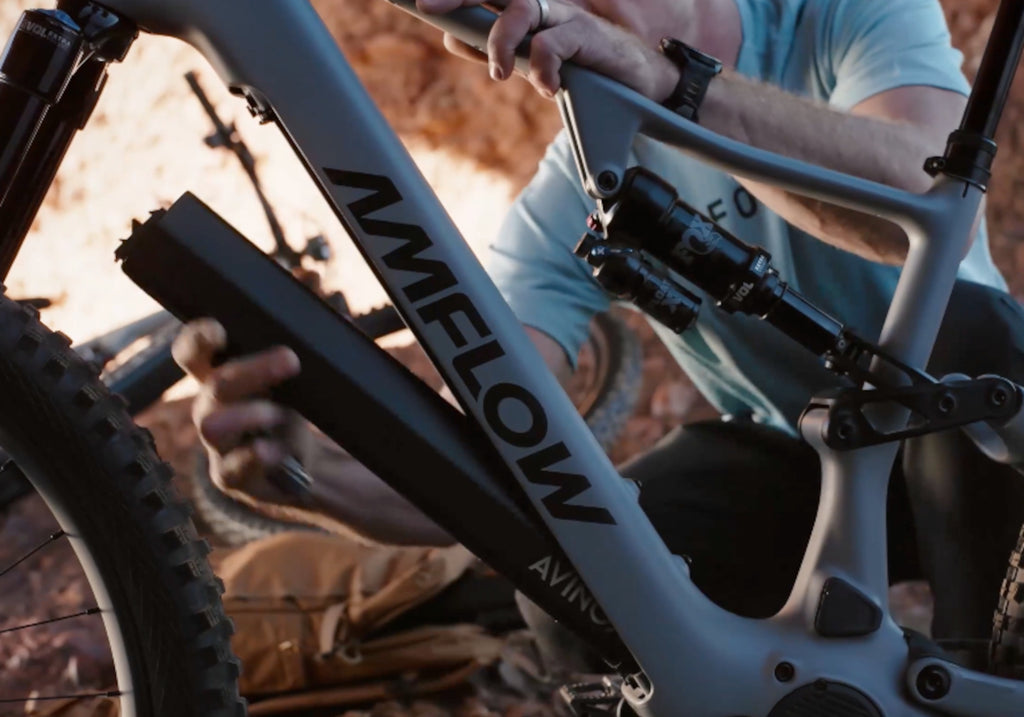

Amflow PR supports independent battery removal for charging and quick swapping, flexibly solving the problem of finding charging stations and enabling rapid energy replenishment on long trips. While reducing maintenance costs, it also makes every departure more worry-free.

The Avinox M2 Drive Unit utilizes multiple high-precision sensors and intelligent algorithms to adjust output in real-time, delivering a natural, linear pedaling feel. The Drive System also features a specialized Auto mode, which adapts assistance in real-time based on road conditions and riding position. For the most challenging trails or steep inclines, activate Boost mode to instantly get 125Nm of torque assistance.

The brand-new 800Wh removable battery features a quick-release design. Weighing as little as 4kg, it combines generous capacity with low weight for a range of up to 158km.

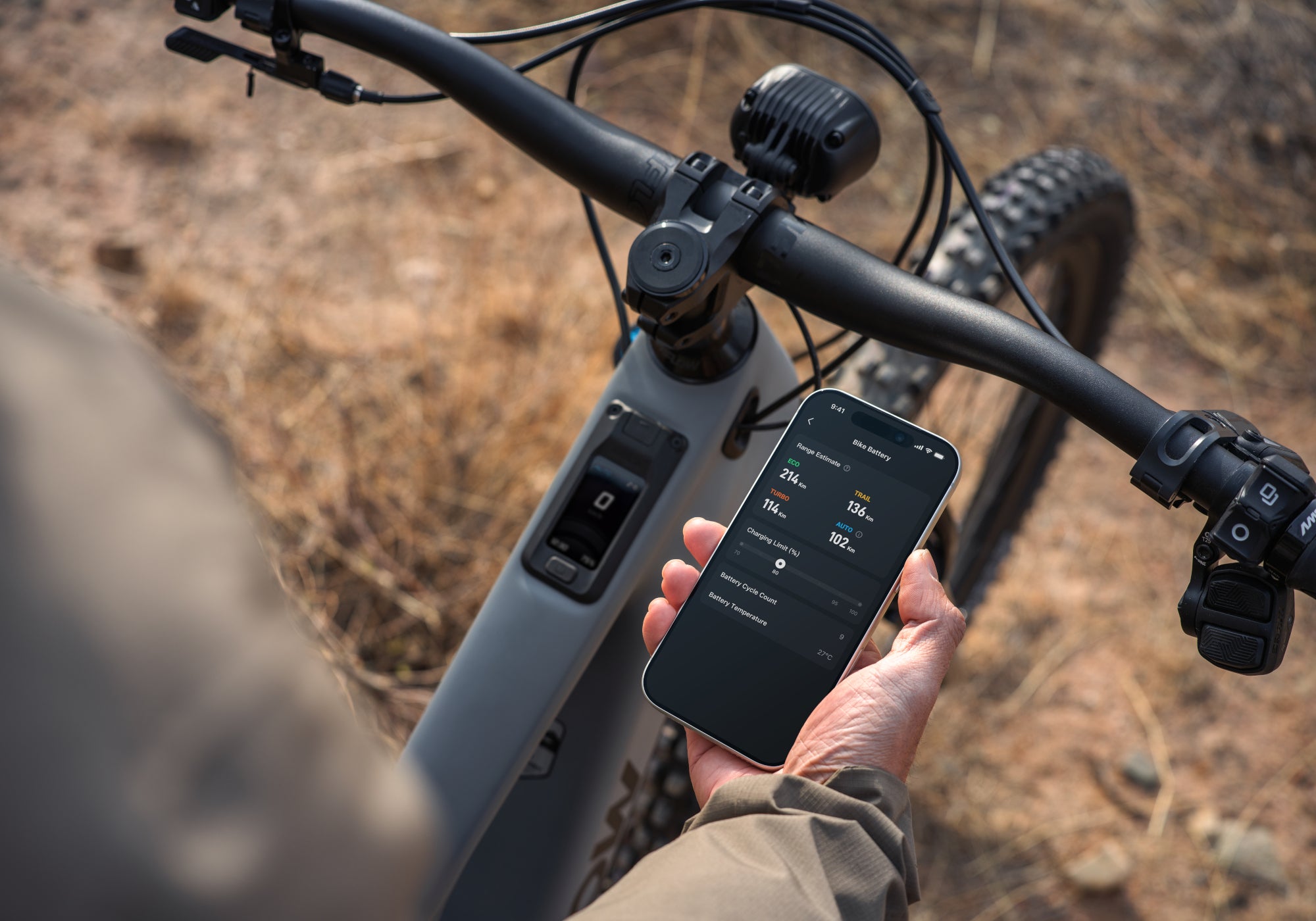

The Avinox Ride app is compatible with third-party route imports and can convert historical tracks into route files (GPX/FIT/TCX formats), allowing one-click synchronization and management of ride data. Once the Control Display receives the data, it can navigate independently without a phone connection, providing real-time turn-by-turn guidance and off-course alerts.

Smart Heart Rate Control: No complex parameter settings are required. Riders simply set a target heart rate zone in the Avinox Ride app and pair a heart rate monitor. The drive system then automatically adjusts drive unit output based on real-time data, keeping you in the optimal heart rate zone to ensure safety.

Size Height (cm)
M 160-176cm
L 168-183cm
XL 173-189cm
XXL 183-199cm



Frame Amflow PR Carbon Frame, 40 adjustable geometry configurations
Travel 150mm rear travel
Compatible with 27.5" and 29" rear wheels
E-Bike System Avinox M2 Drive Unit: Nominal 110N·m, peak 125N·m
Display Avinox Screen: 2-inch OLED Control Display
Battery Avinox Removable Battery: 800Wh
Shifter Avinox Wireless Controllers: Right and left sides
Charger Avinox Charger: 4A/168W
Rear shock FOX Float Rhythm, custom tune, LSR adjustment, 210×55mm, air shock
Fork FOX AWL HD Sport, 160mm travel, RAIL 2.0 damper, Sweep/LSR adjustment, 15×110mm, 44mm offset
Rear Derailleur SRAM S1000 Eagle 12-speed (SRAM AXS Extension Cord)
Chainring SRAM Eagle Transmission E-MTB Chainring 104BCD 38T
Shift Levers SRAM AXS Pod Controller
Cassette SRAM XS-1270 Eagle Transmission 10-52T
Chain SRAM Eagle 70 Transmission Flattop
Crankset Avinox SL Crank (M/L: 155mm; XL: 160mm)
Brakes Tektro TKD173 Hydraulic Disc Brake, 4-piston calipers, Amflow custom Tektro Sensor Rotor (203mm, 2.3mm)
Wheels Amflow XMA-30, 29"/27.5"
Rims Alloy, 30mm internal width, 32H, tubeless ready
Spokes SAPIM E-Light
Front Hub Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt
Rear Hub Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, 6-bolt, 4 pawls 36T
Tires Front: Maxxis Assegai, 29.0×2.50 M356RU 3C MaxxGrip/EXO+/TR, Rear: Maxxis DHR II, 27.5×2.50 M327RU New MaxxTerra/DD/TR
Handlebar Amflow Enduro Alloy Handlebar, 40mm rise, 800mm wide, 5-degree upsweep, 9-degree backsweep
Grips Amflow Enduro Grip 2 Lock-on
Stem Amflow Mountain Bike Split Stem, Length: 35mm, Clamping diameter: 35mm
Saddle Amflow Mountain
Seatpost Amflow Dropper Post (adjustable: 0/5/10/15/20mm), M: 190mm, L/XL: 210mm

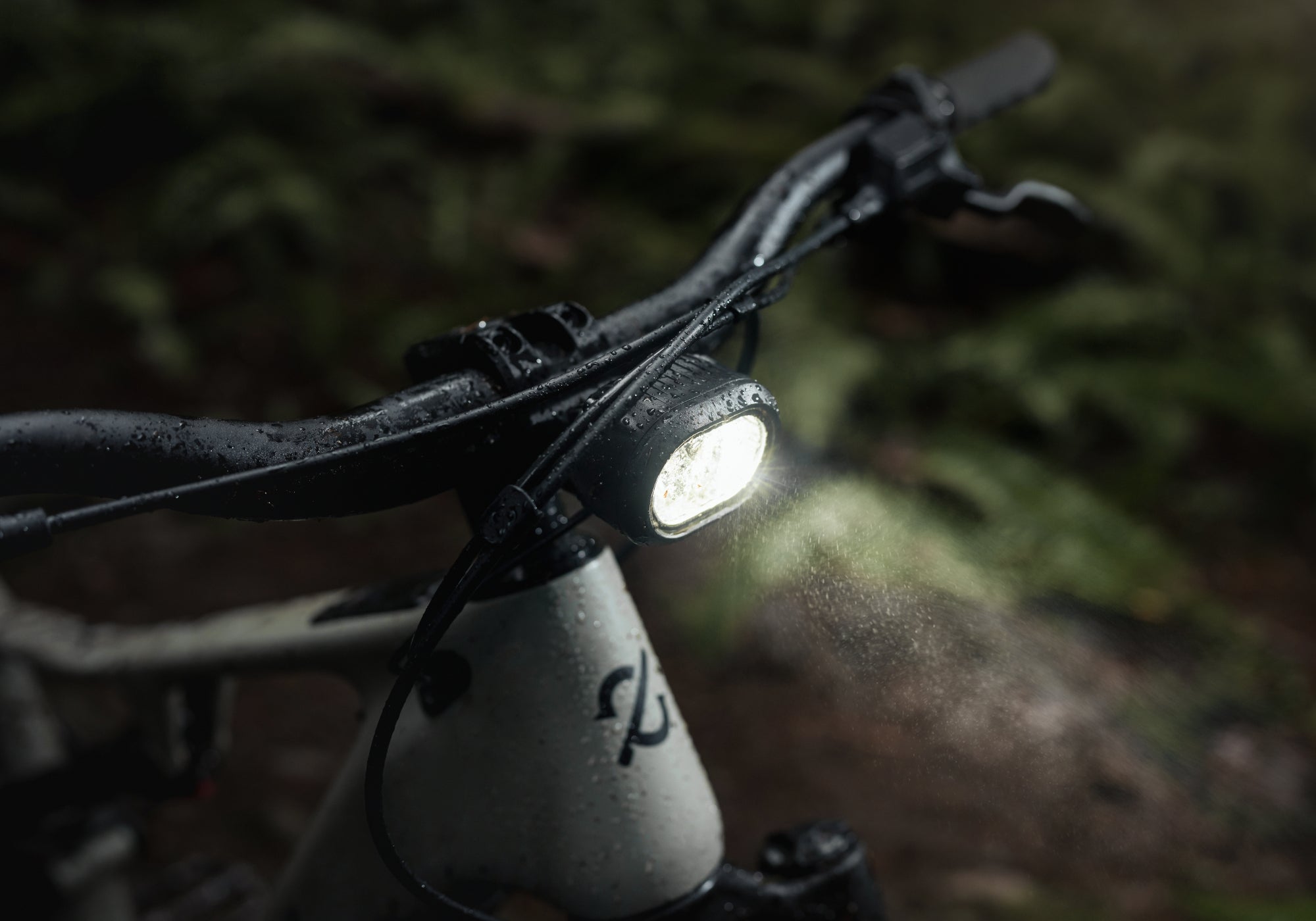

Accessories Three Geometry Adjustment Systems (0.5°/1° Headset Cups, Chainstay Flip-Chip), Removable Battery Keys × 2, 5/10mm Dropper Post Travel Reducing Spacer, Avinox Front Light, Rear Light, Bottle Cage, Frame Protection Film, Quick Start Guide, Torque Wrench, Shock Pump
Specifications subject to change without notice.

About Amflow
Born in 2023 after years in the making. DJI, the force behind Amflow, is the market leader in drone technology and they have applied this knowledge and expertise and created a complete e-bike system.

Product Code CP.EB.00700291.01
