Amflow PL Carbon Pro

Amflow PL Carbon Pro
Amflow PL Carbon Pro Amflow PL Carbon Pro Amflow PL Carbon Pro Amflow PL Carbon Pro Amflow PL Carbon Pro Amflow PL Carbon Pro Amflow PL Carbon Pro Amflow PL Carbon Pro Amflow PL Carbon Pro Amflow PL Carbon Pro

Product Details

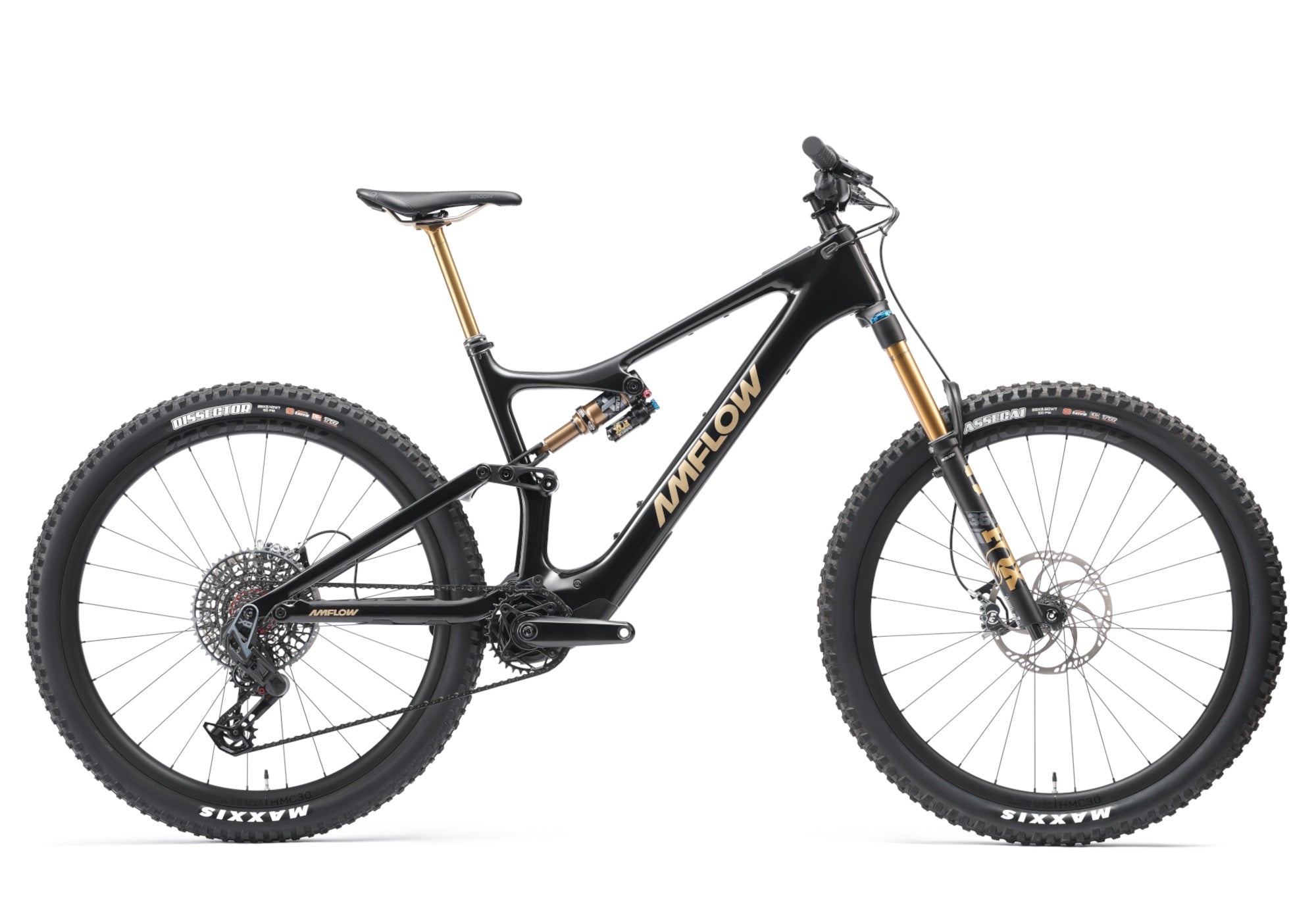

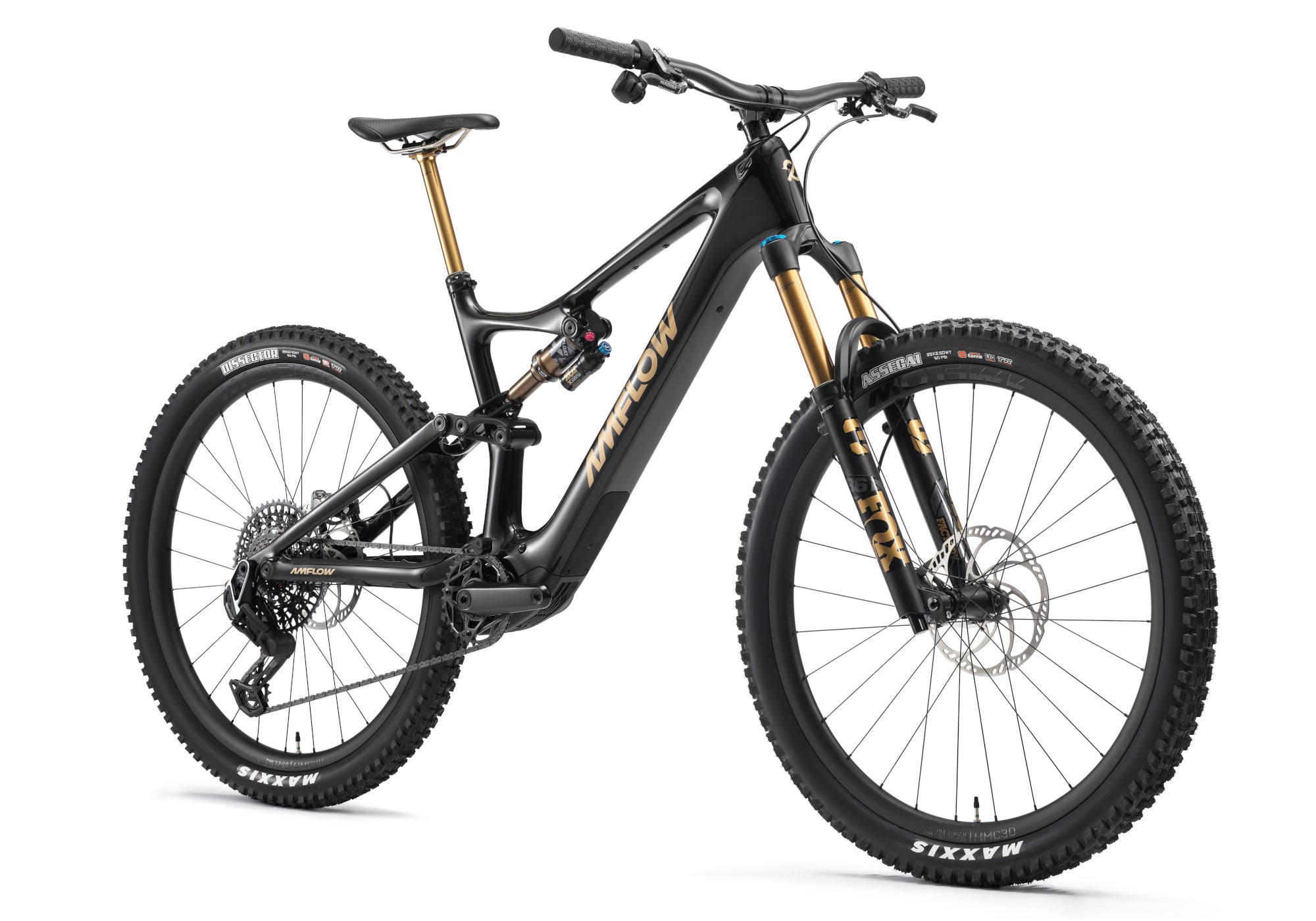

The Amflow PL electric mountain bike offers 850 watts of peak power in an ultra-light build weighing close to 20 kg. With its unrivaled combination of power, range, weight, and intelligent features, this groundbreaking eMTB is built for the trailblazers. Amflow PL's ultra-light carbon fiber frame weighs just 2.27 kg, [Medium] for breathtaking speed and agility.

Designed and manufactured by DJI, the Avinox Drive System is seamlessly integrated into Amflow PL, infusing the type of cutting-edge hardware and software that has made DJI an industry leader in drones and camera stabilization technology. The Avinox M1 Drive Unit features a compound planetary gearset with an industry-leading power-to-size ratio.

The durable, high-strength polymer material inside the Avinox M1 Drive Unit effectively suppresses noise during high-speed gearbox operation. With multiple precision sensors built-in, combined with advanced DJI algorithms, it provides a strong, smooth assistance for a wide range of scenarios and conditions.

In addition to traditional assistance modes of Eco, Trail and Turbo, the DJI Avinox Drive System also features a specialized Auto mode, which adapts assistance in real-time based on road conditions and riding position. Once enabled, Auto mode empowers users to tackle a wide variety of terrain types and gradients without having to switch modes. For the most challenging trails or steep inclines, activate Boost mode to instantly get 120 N·m of torque and 1000W high-power assistance.

Amflow PL is compatible with both 29 and 27.5-inch rear wheels. [27.5 requires wheel purchase] By adjusting the flip chips, you can accommodate both sizes without altering the frame's geometric center of gravity. Whether you want to hone your technical skills or simply enjoy high speeds, Amflow PL is ready to ride.

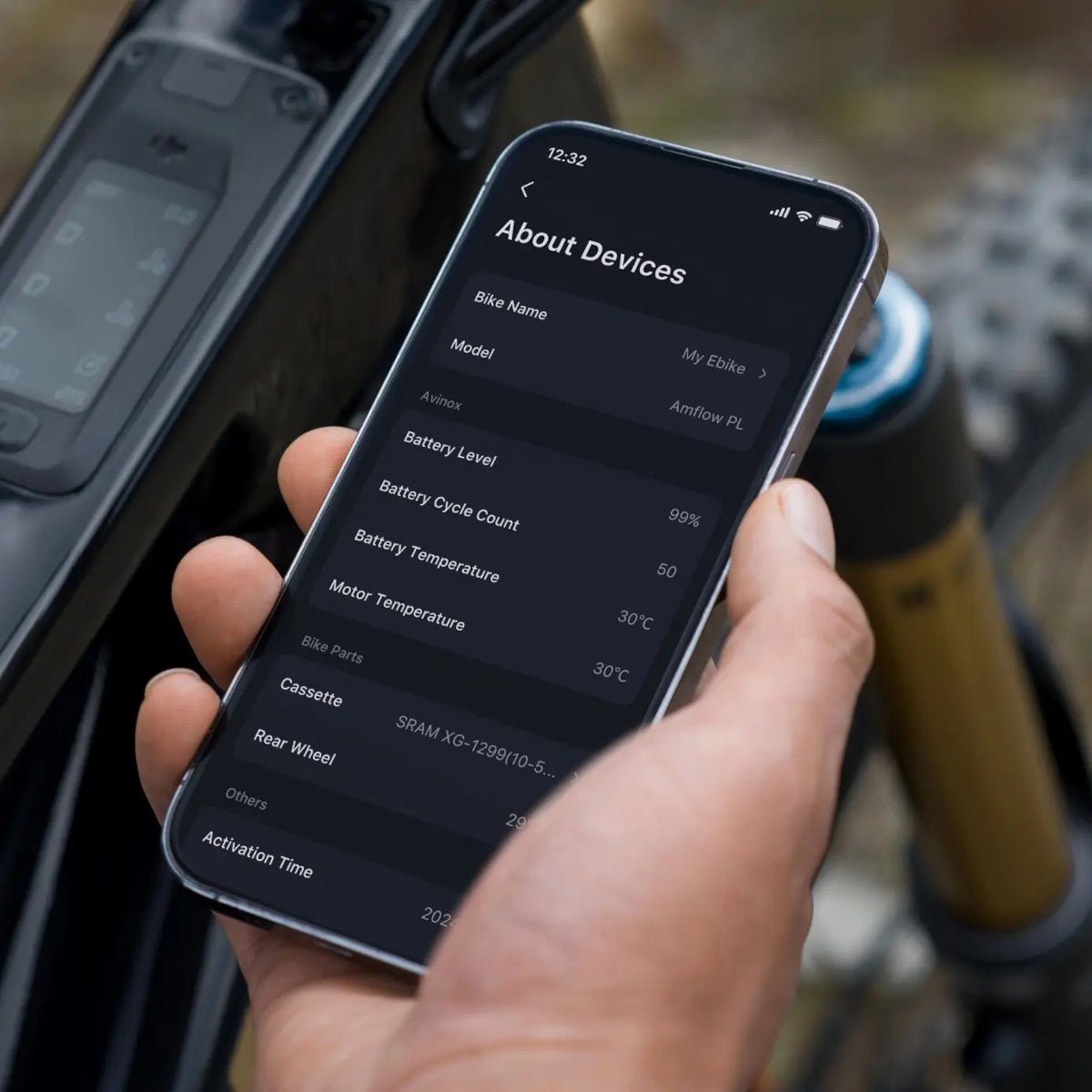

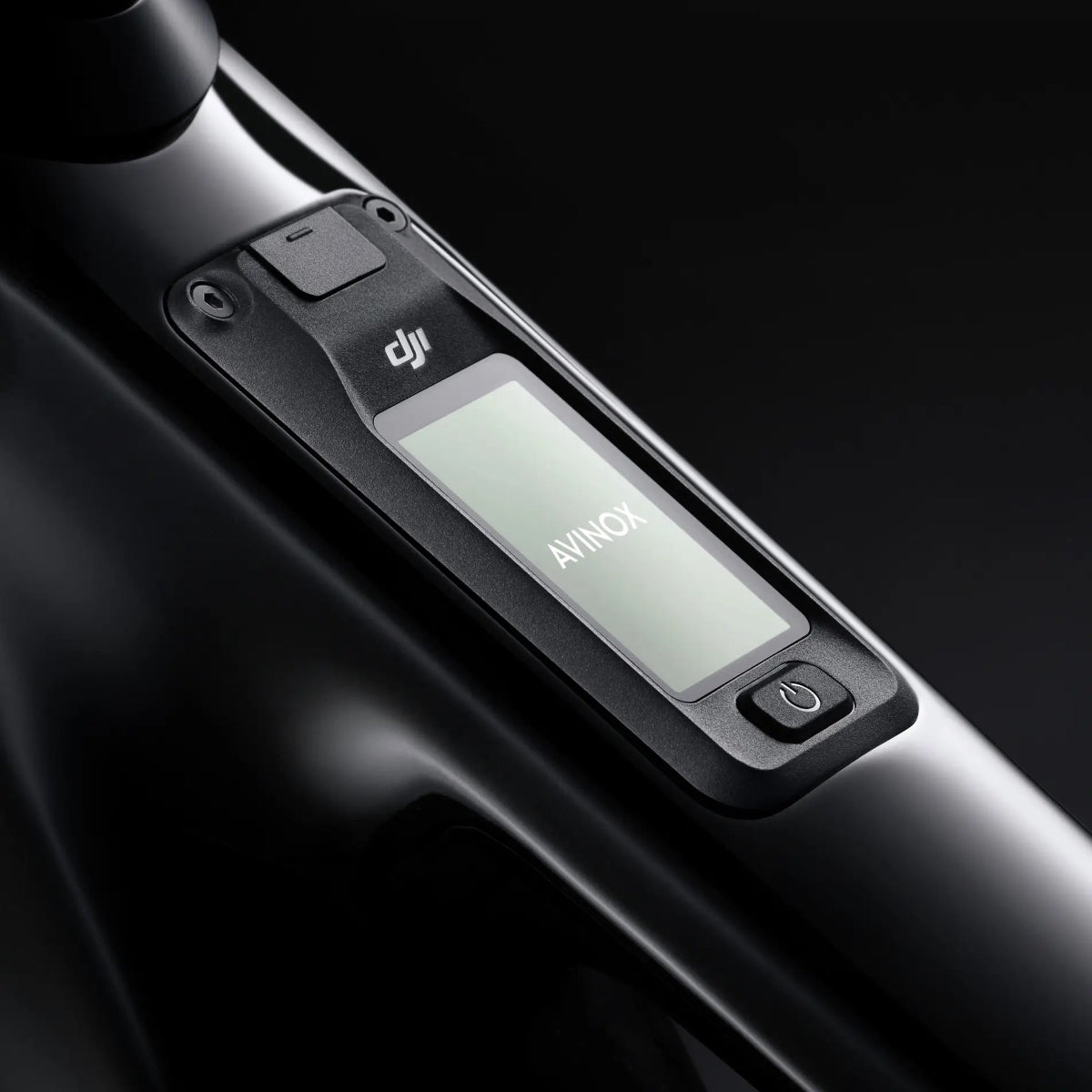

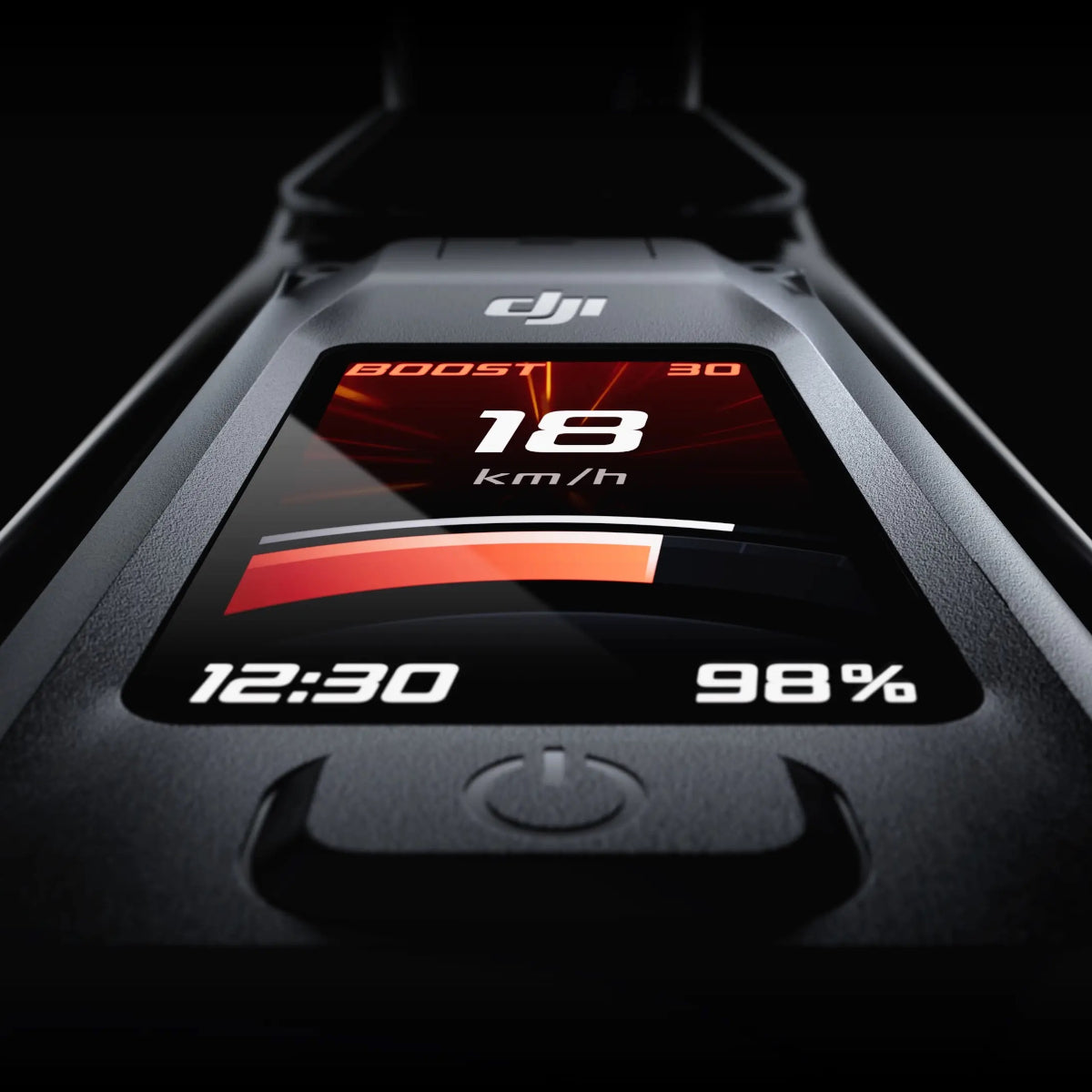

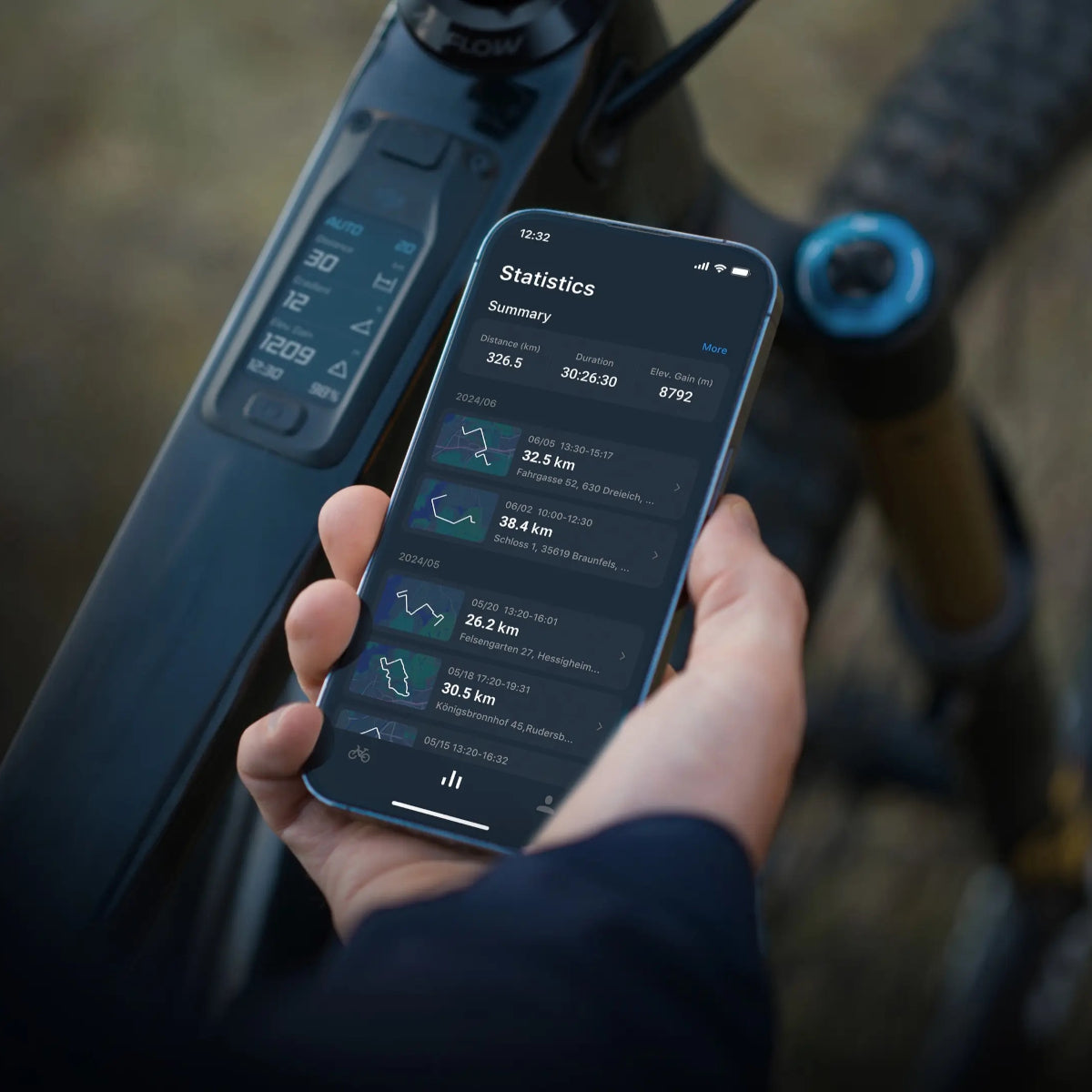

The brain of the DJI Avinox Drive System is the Control Display. This 2-inch full-color OLED touchscreen is integrated directly into the frame. It displays real-time ride data and estimated range, and enables quick changes of the display content with a simple slide. With the Control Display or the Avinox app, riders can review a rich array of data like speeds, range, cadence, power, torque, gradient, altitude, calories burned, ride times, heart rate, and more. This data can also be easily synced with Strava. Some features require additional accessories.

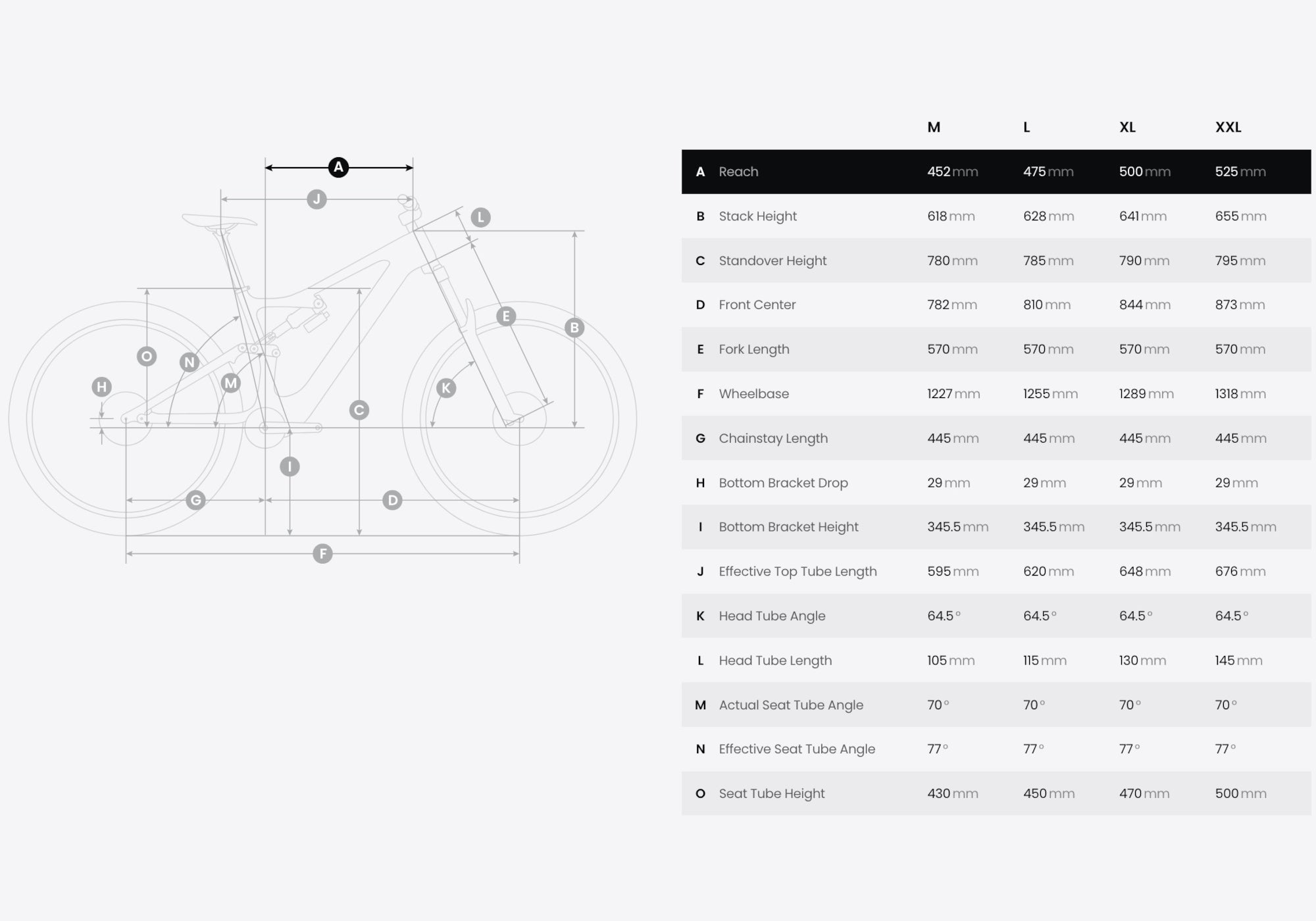

Size Height (cm) Height (inch)
M 162-178 5'4-5'10"
L 170-185 5'7-6'1"
XL 175-191 5'9-6'3"
XXL 185-201 6'1 - 6'7"



Frame Amflow PL Carbon Frame

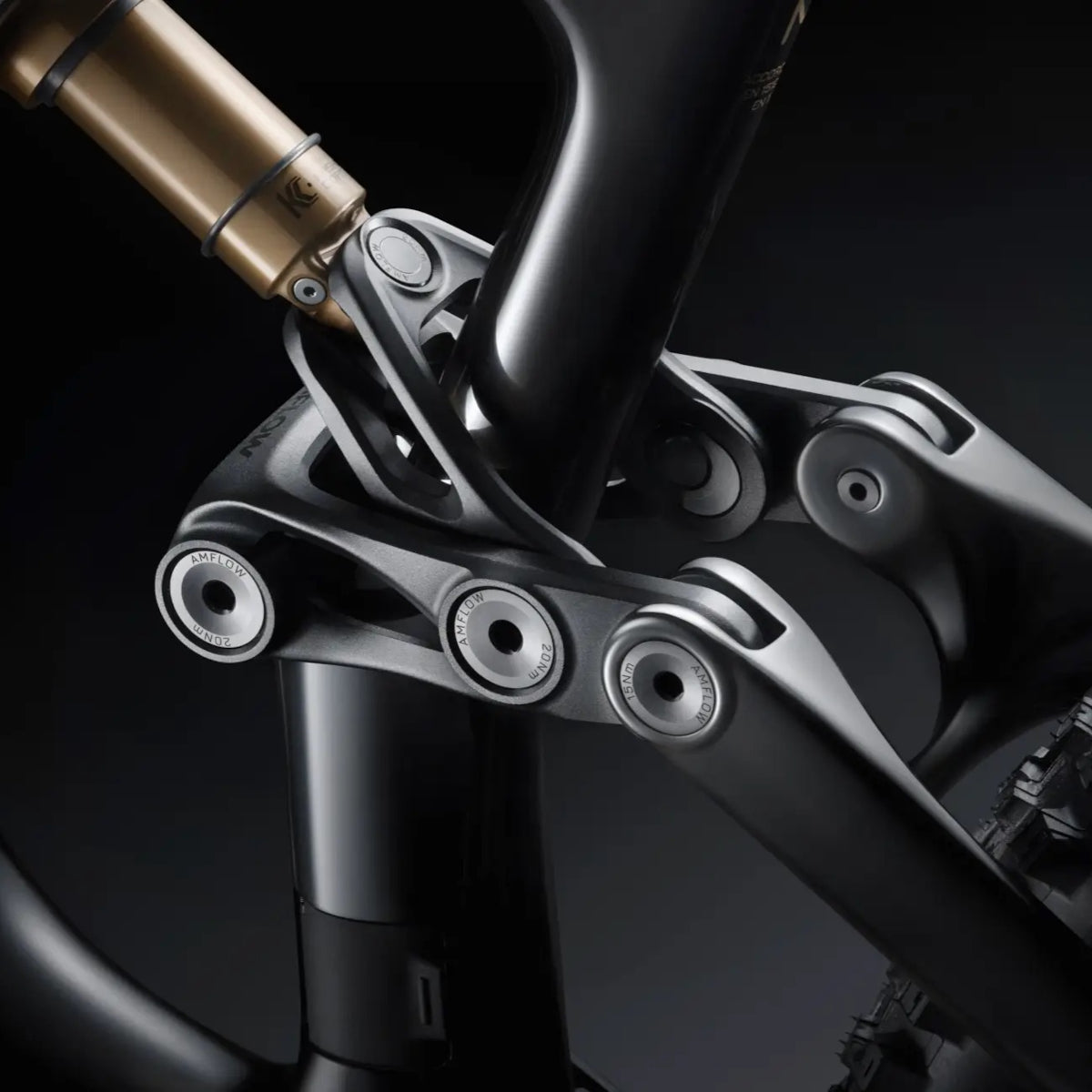

Travel 150mm rear travel
Compatible with 27.5" and 29" rear wheels
E-Bike System Avinox M1 Drive Unit: 105 N·m
Display Avinox Screen: 2-inch OLED Control Display
Battery Avinox Integrated Battery: 800Wh
Shifter Avinox Wireless Controllers: Right and left sides

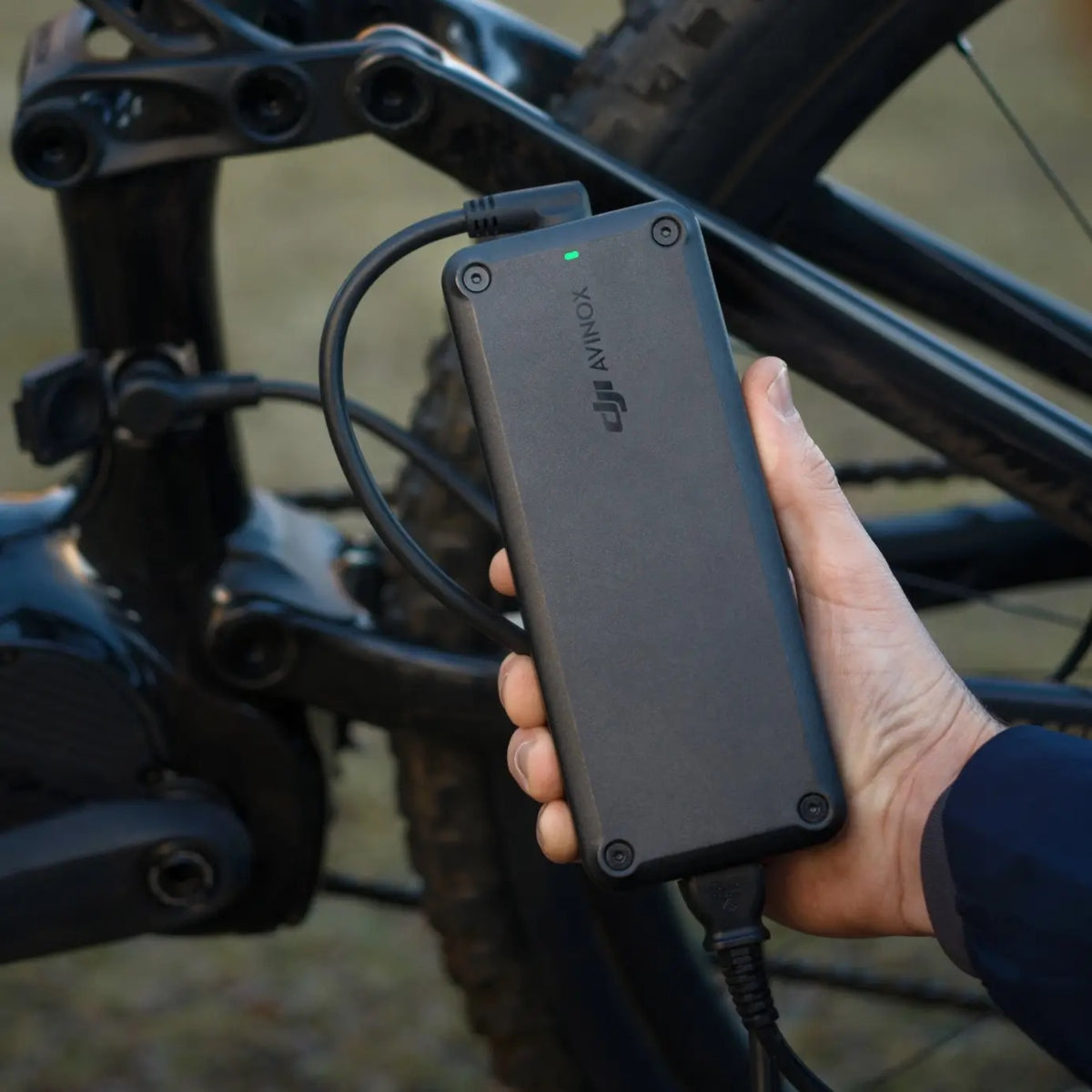

Charger Avinox Fast Charger: 12A/508W
Rear shock FOX FLOAT X Factory, Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever w/ LSC adjustment
Fork FOX 36 Factory, 160mm travel, GRIP X2 Damper, 15×110mm, 44mm rake

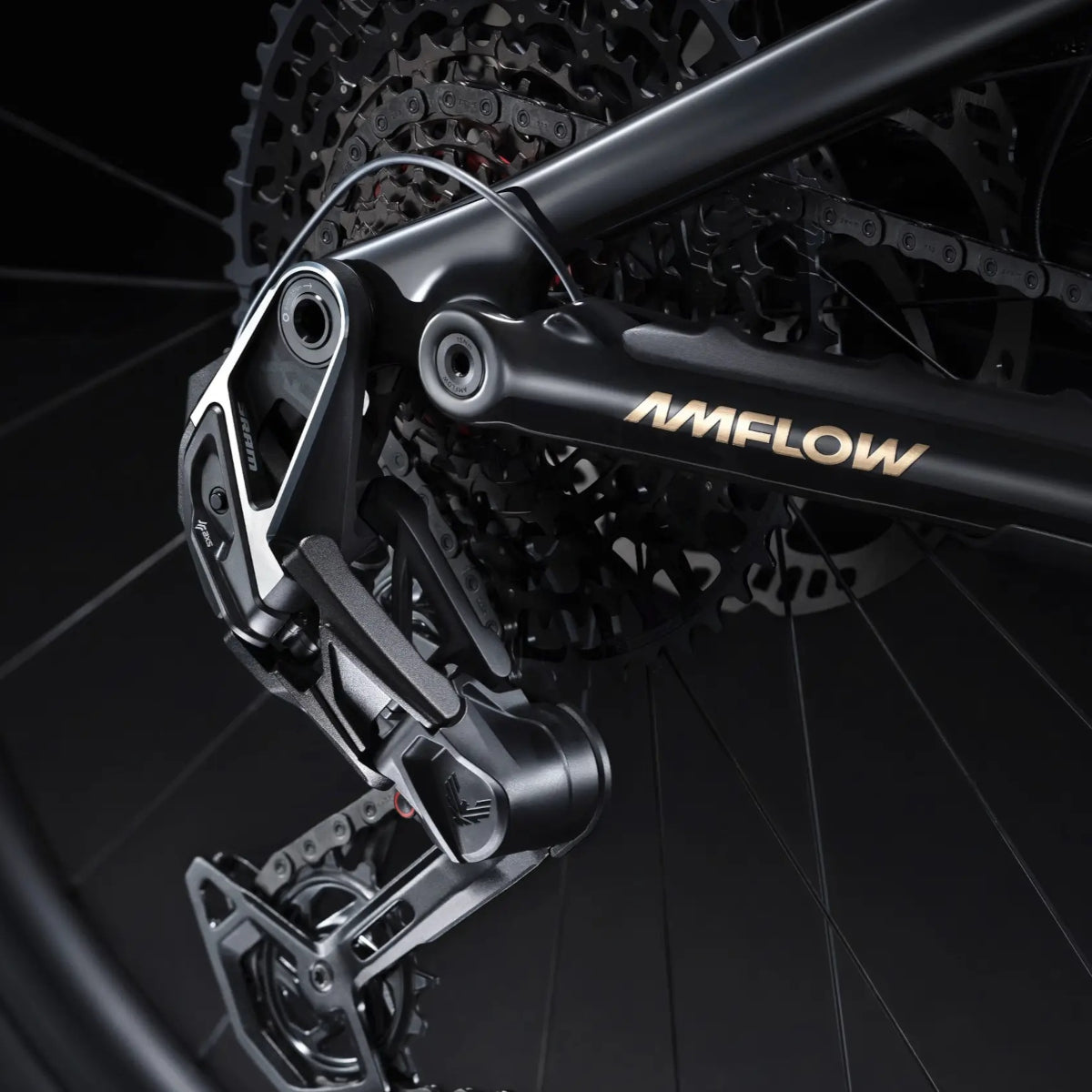

Rear Derailleur SRAM X0 Eagle Transmission Derailleur w/ power cable
Chainring SRAM Eagle Transmission E-MTB Chainring 104BCD 34T
Shift Levers SRAM AXS Pod Controller
Cassette SRAM XS-1295 Eagle Transmission 10-52T
Chain SRAM X0 Eagle Transmission Flattop Chain
Crankset DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
Brakes Magura MT7 Pro hydraulic disc brake, HC lever, 4-piston caliper, 203mm Storm HC Rotor (front and rear)
Wheels Amflow HMC-30
Rims Carbon, 29'', 30mm internal width, 28H, tubeless ready
Spokes SAPIM E-Light Straightpull
Front Hub Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 28h, straight-pull, 6-bolt
Rear Hub Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 28h, straight-pull, 6-bolt, 78T
Tires Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR, Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR
Handlebar Amflow Enduro Carbon Handlebar, 25mm rise, 800mm wide, 5-degree upsweep, 9-degree backsweep
Grips Amflow Enduro Grips
Stem Amflow Enduro Stem, One-piece CNC, Length: 35mm, Clamping diameter: 35mm
Saddle Ergon SM PRO M/L
Seatpost Fox Transfer Factory, Travel adjustable in 5mm, M: 125-150mm, L/XL: 155-180mm, XXL: 185-210mm
Accessories Quick Start Guide, Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25), Shock Pump, Front and Rear Lights
Specifications subject to change without notice.

About Amflow
Born in 2023 after years in the making. DJI, the force behind Amflow, is the market leader in drone technology and they have applied this knowledge and expertise and created a complete e-bike system.

Product Code CP.EB.00000055.01
