Home / Specialized Turbo Levo Family / Specialized Turbo Levo 4 EVO Comp Alloy

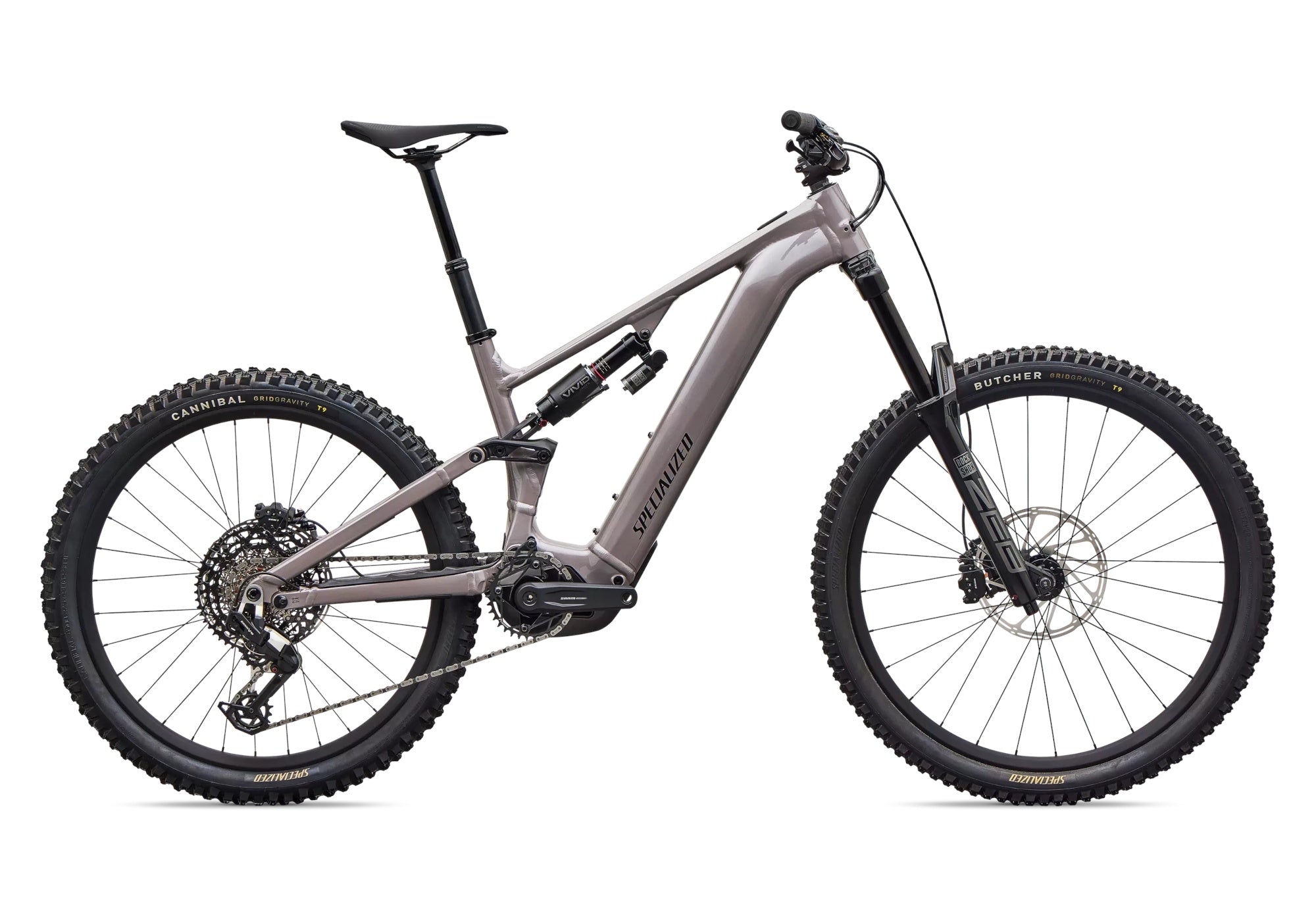

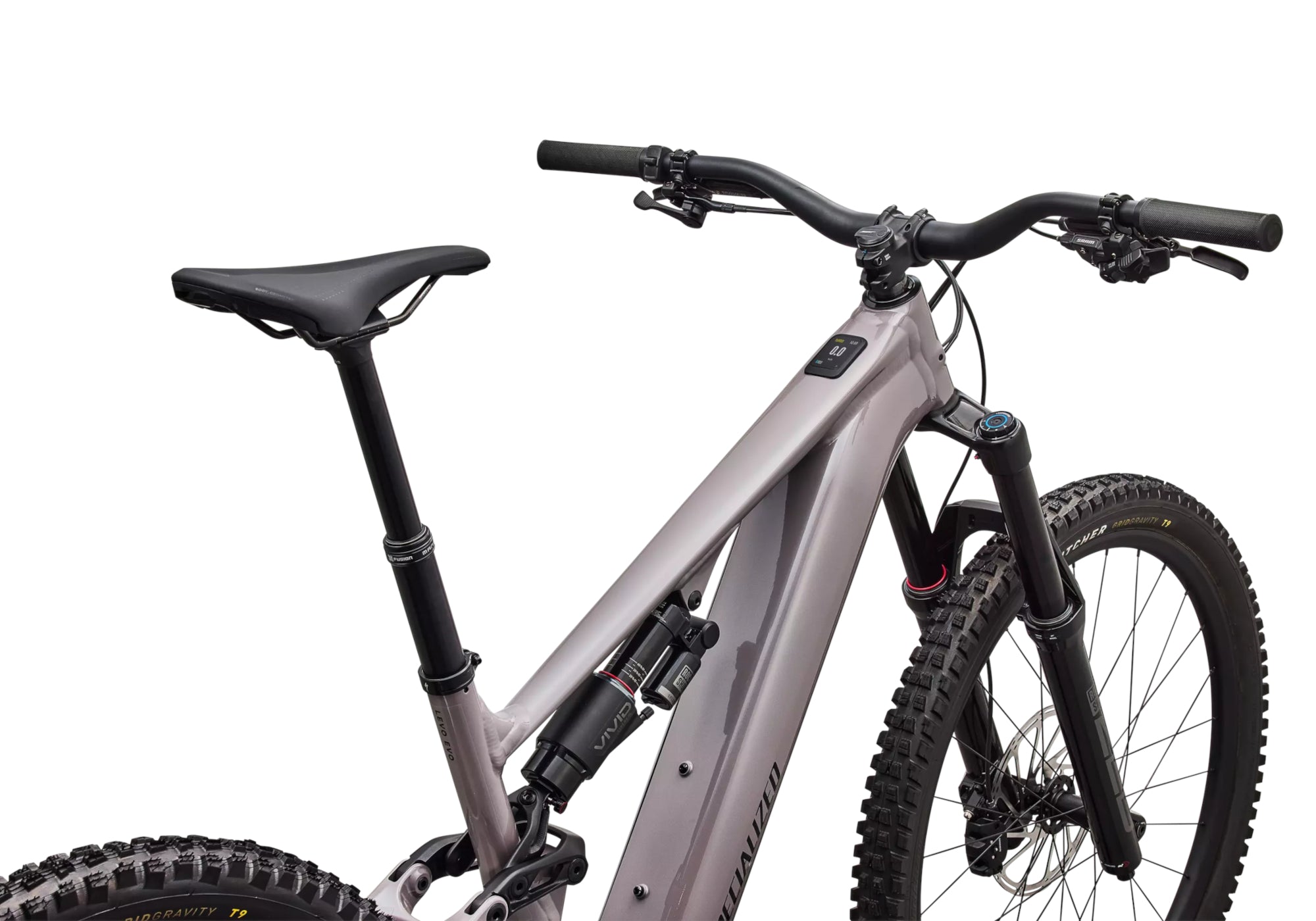

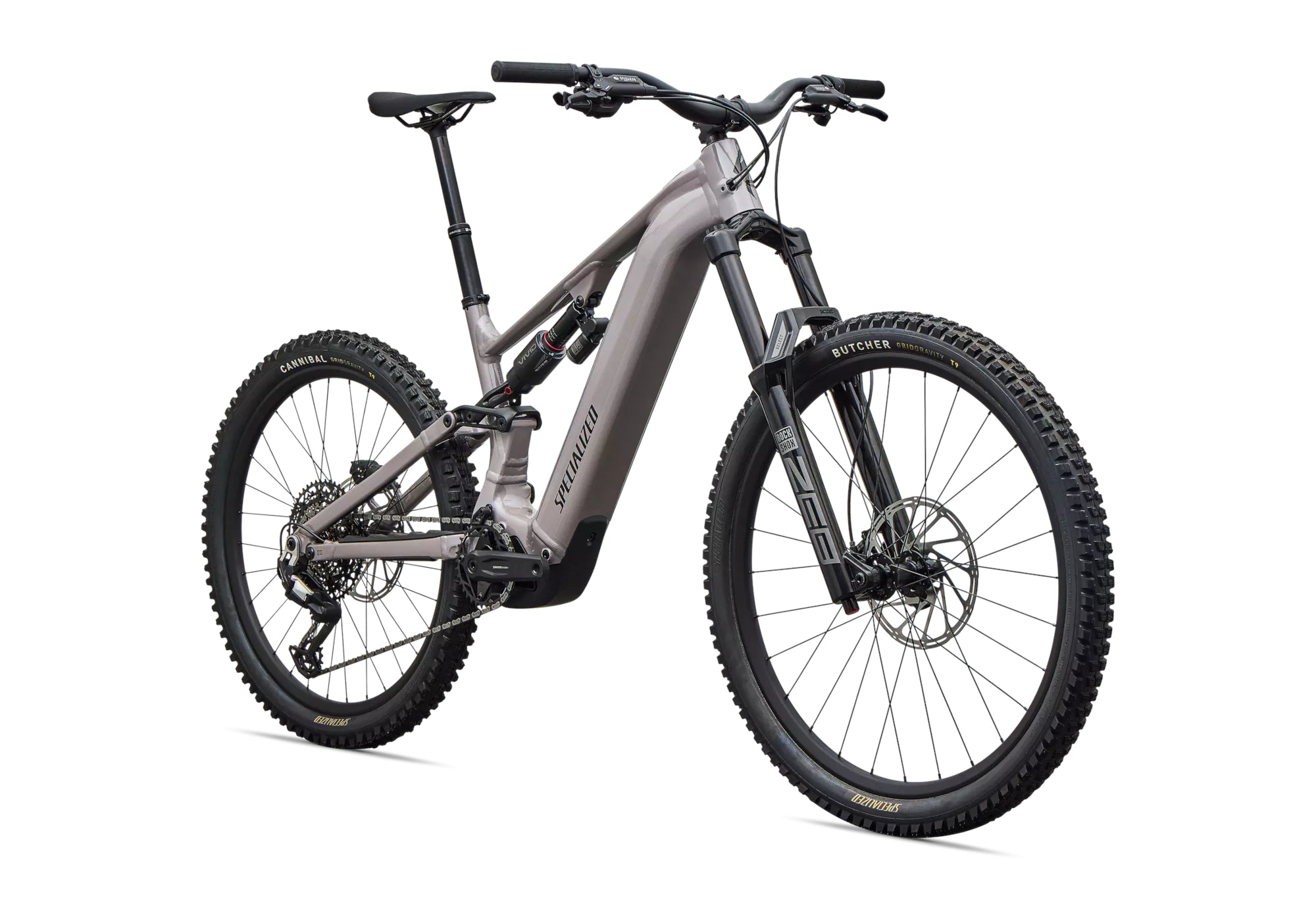

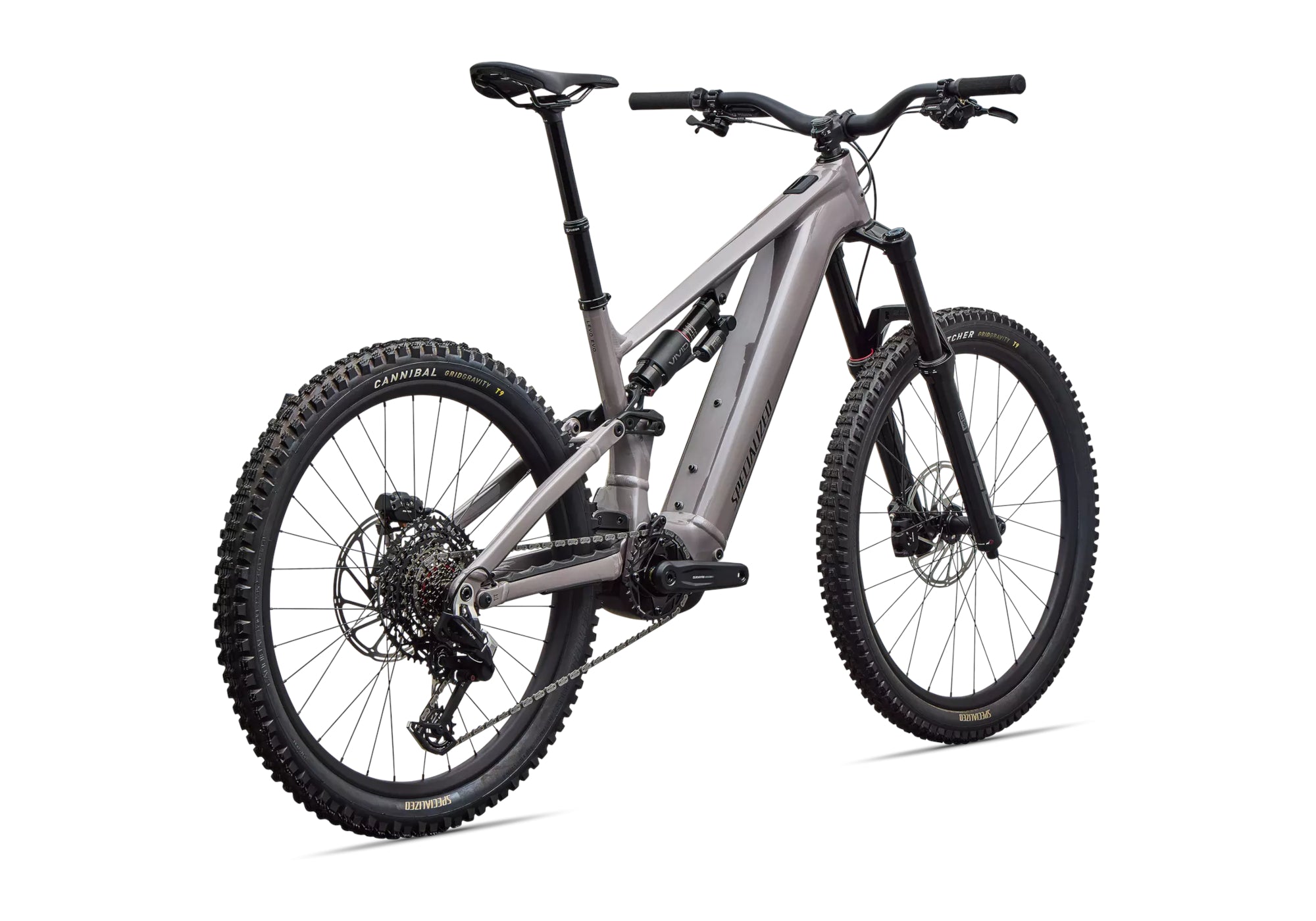

Specialized Turbo Levo 4 EVO Comp Alloy

Specialized Turbo Levo 4 EVO Comp Alloy
Specialized Turbo Levo 4 EVO Comp Alloy Specialized Turbo Levo 4 EVO Comp Alloy Specialized Turbo Levo 4 EVO Comp Alloy Specialized Turbo Levo 4 EVO Comp Alloy Specialized Turbo Levo 4 EVO Comp Alloy Specialized Turbo Levo 4 EVO Comp Alloy Specialized Turbo Levo 4 EVO Comp Alloy Specialized Turbo Levo 4 EVO Comp Alloy

Product Details

Levo 4 EVO is built for riders who don’t tiptoe around terrain. The riders who point into the steep stuff, ride bike parks without a chairlift, and want a bike that stays calm when things get fast, rough, and consequential.

  • Use: Electric Enduro
  • E-System: Specialized 3.1 Motor w/ 810 Watts & 105 Nm, 840 Wh Battery, up to 5 hour range w/ optional Range Extender
  • Frame: Levo EVO M5 alloy frame, Geo Adj & SWAT Storage
  • Suspension: Fork: 180mm RockShox Zeb Select, Shock: Vivid Select Air Linear
  • Drivetrain: SRAM 90 Eagle T-Type Mechanical
  • Wheels: Specialized Alloy Rims
FRAME Levo 4 alloy frame, 170mm travel, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel
FORK All New SRAM FS ZEB Select, 29" 180mm, Linear XL spring, Delta RC damper, rebound adjust

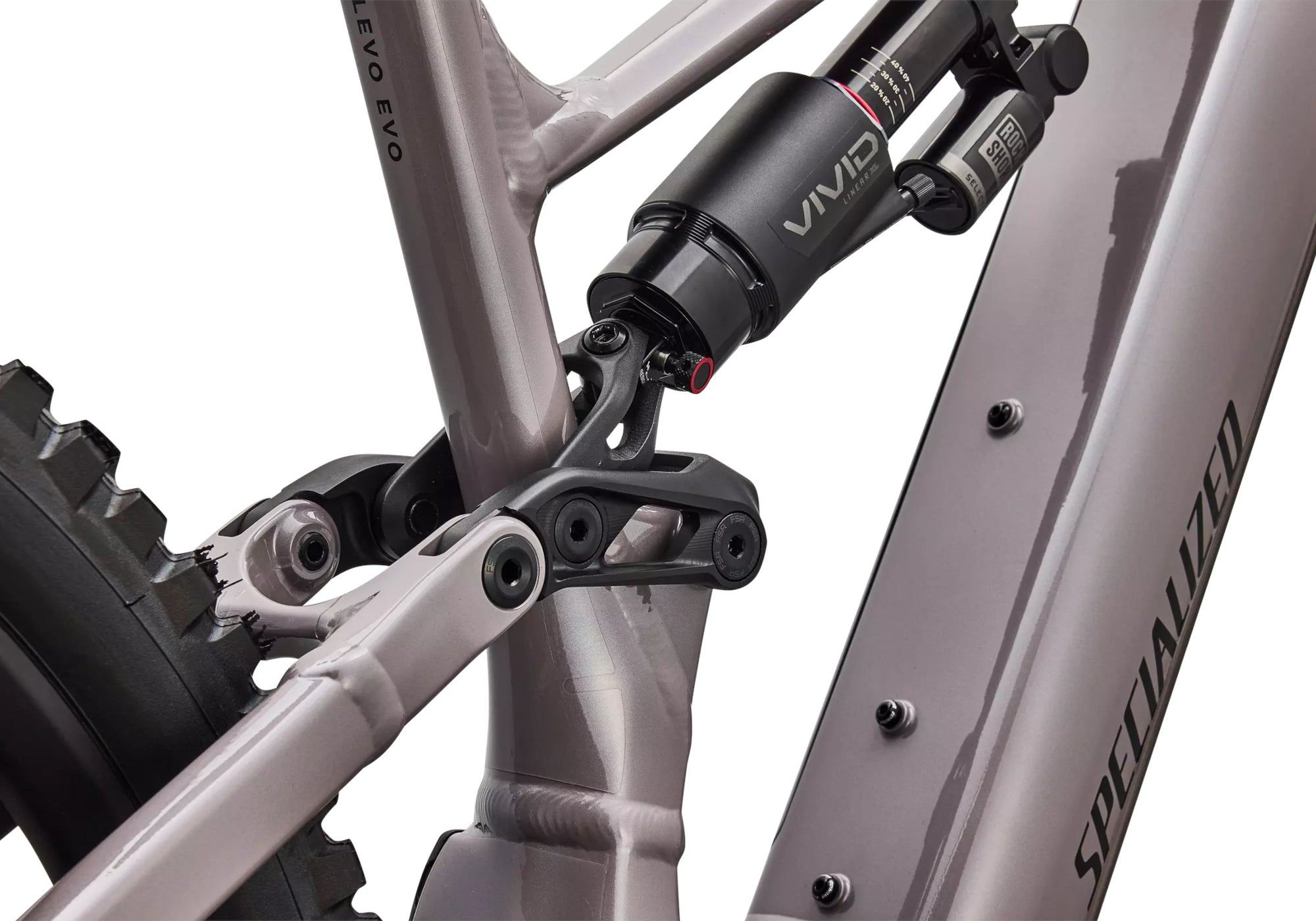

REAR SHOCK All New Vivid Select air, 230x62.5mm, Linear XL spring, RT damper w/climb switch, rebound adjust
FRONT HUB Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 28h
REAR HUB Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12X148mm thru-axle, 32h, HG Steel
SPOKES DT Swiss Elemental
RIMS Specialized Alloy Rims
FRONT TYRE Butcher, GRID Gravity, T9, TLR, 29x2.4"
REAR TYRE Cannibal GRID Gravity T9 TLR Downhill Tire 27.5x2.4"
CRANKSET SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm
CHAINRINGS SRAM T-type ring, 34T, 104 BCD, steel
SHIFT LEVERS SRAM 90 trigger, 12-speed, single click
REAR DERAILLEUR SRAM Eagle 90 T-Type
CASSETTE SRAM 12-speed, 10-52t
CHAIN SRAM 70 Transmission 12-Speed Flattop Chain
FRONT BRAKE SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm Centerline rotor
REAR BRAKE SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm Centerline rotor

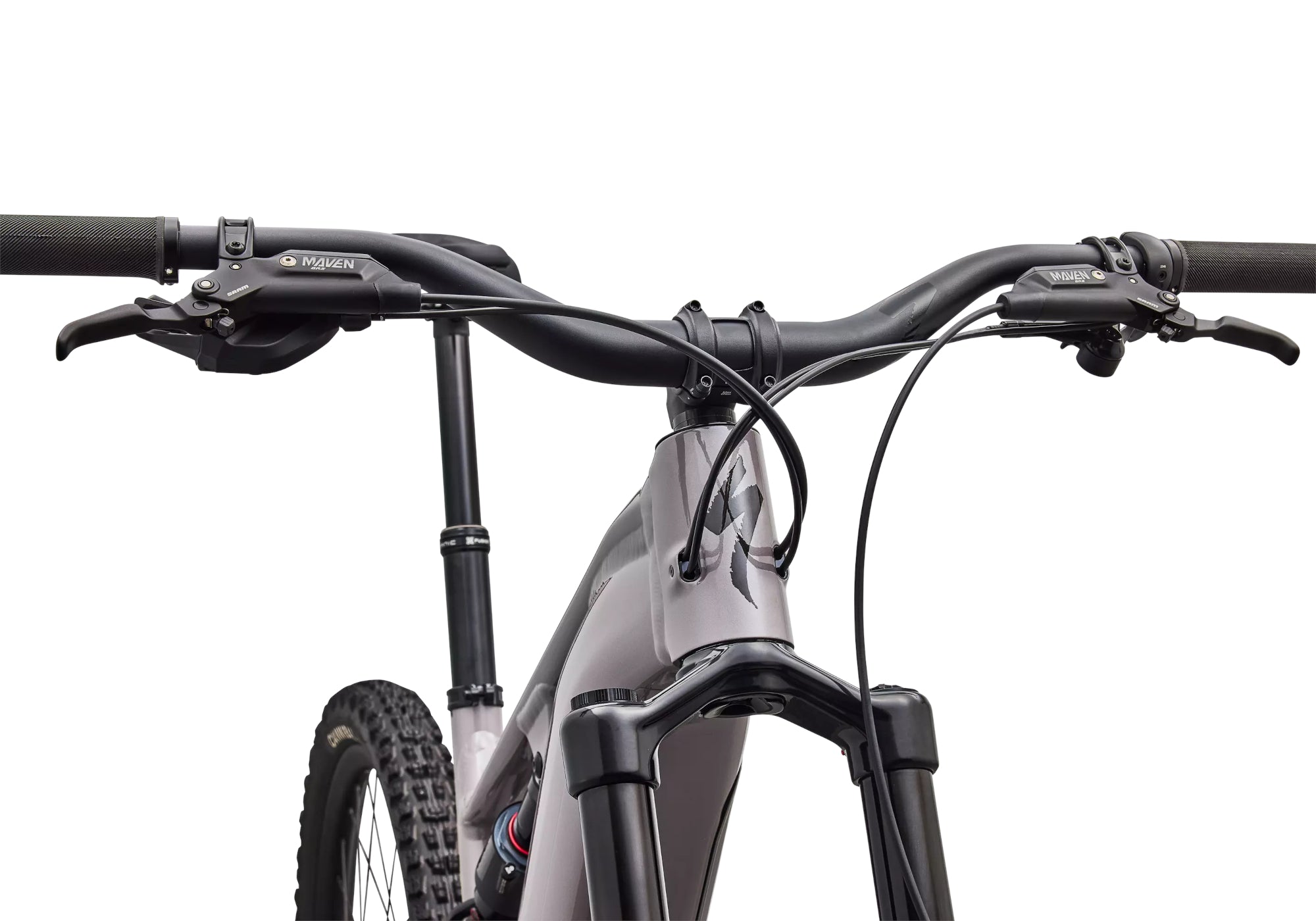

HANDLEBARS Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S2: 30mm rise, 780mm width, S3-S5: 40mm rise 800mm width
GRIPS Specialized Trail Grips
STEM Alloy Trail Stem, 35mm bar bore
SADDLE Bridge Comp, Hollow Cr-mo rails, 155/143mm
SEATPOST X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 170mm, S6: 190mm

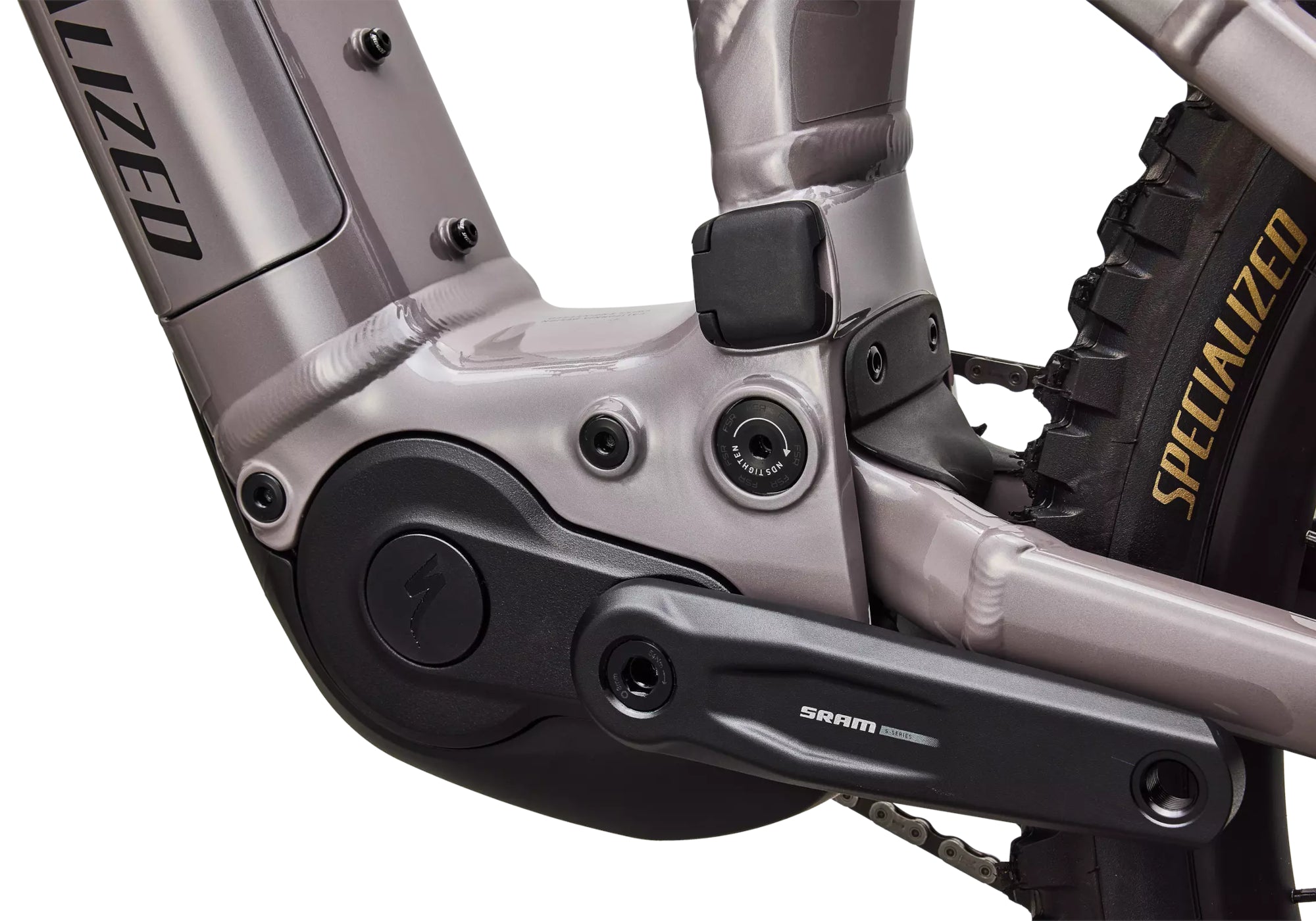

MOTOR All New Specialized 3.1 Motor, 105Nm torque, 810W power

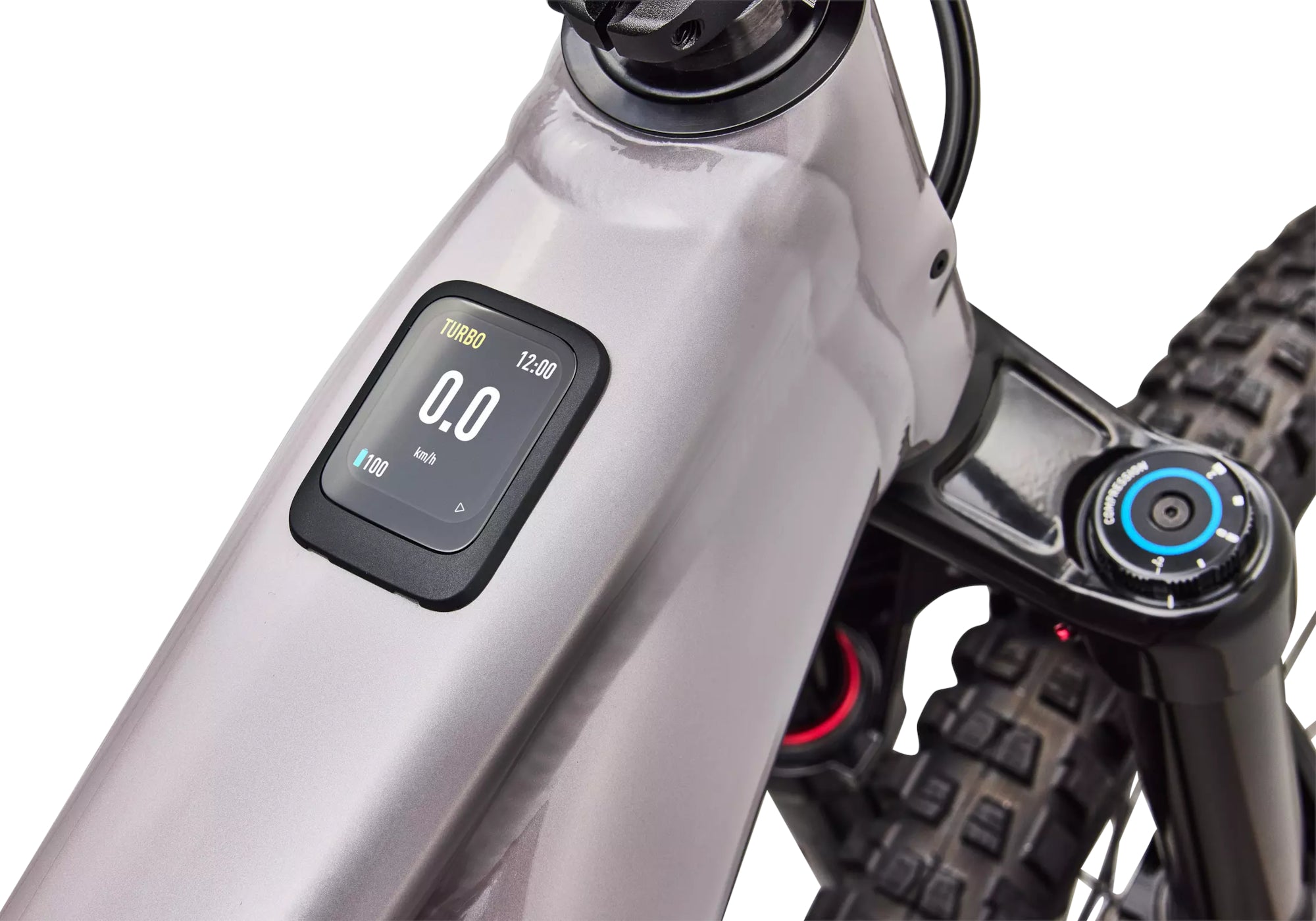

UI/REMOTE Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My
BATTERY 840wh battery
CHARGER Specialized 4amp charger
WIRING HARNESS Custom Specialized wiring harness
Accessories SWAT internal downtube storage
Weight 26.9 kg, Size S4
Specifications subject to change without notice.
[mm] S3 S4 S5
BB Drop 24 24 24
BB Height 356 356 356
Bike Standover Height 765 763 768
Chainstay Length 435 435 435
Crank Length 155 155 155
Fork Length (full) 597 597 597
Fork Rake/Offset 44 44 44
Front Center 797 828 859
Handlebar Width 800 800 800
Headtube Angle 63.6 63.6 63.6
Headtube Length 103 117 132
Max Seatpost Insertion 289 313 317
Min Seatpost Insertion 80 80 80
Reach 445 470 495
Saddle Width 143 143 143
Seat Tube Angle 76 76 76
Seat Tube Length 405 425 445
Seatpost Length 150 170 200
Stack 633 646 659
Stem Length 40 40 40
Trail 139 139 139
Wheelbase 1232 1263 1294

About Specialized
As their motto says, “Made for riders, by riders”. Specialized made the first production mountain bike in 1974, and since then they have been industry leaders. From lightweight carbon race bikes, innovative kids bikes, class leading e-bikes and tyres & accessories, Specialized continue to push boundaries.



Product Code 95227-5403
