Renthal Revo-F Pedals

Renthal Revo-F Pedals
Renthal Revo-F Pedals Renthal Revo-F Pedals Renthal Revo-F Pedals Renthal Revo-F Pedals Renthal Revo-F Pedals

Product Details

All Renthal pedals are designed and developed in-house and are packed with unique features, not found in other pedals. The pedal is a key contact point.

With Ride-Tuned external features and patent pending internals, the Revo-F is the new flat pedal of choice. Featuring a two-axis concave pedal body, fully useable pedal platform and a pin system for fine tuning grip levels, the Revo-F offers unrivalled on-trail performance.

The Revo-F spins on an extra wide Igus bush and three cartridge bearings, with the internals fully sealed from the elements. Patent pending internals allow easy home maintenance, using standard tools. The Renthal Revo-F is packed with unique features to deliver the ultimate Ride-Tuned on trail performance, tuneable grip levels, ease of maintenance and bomb-proof durability.

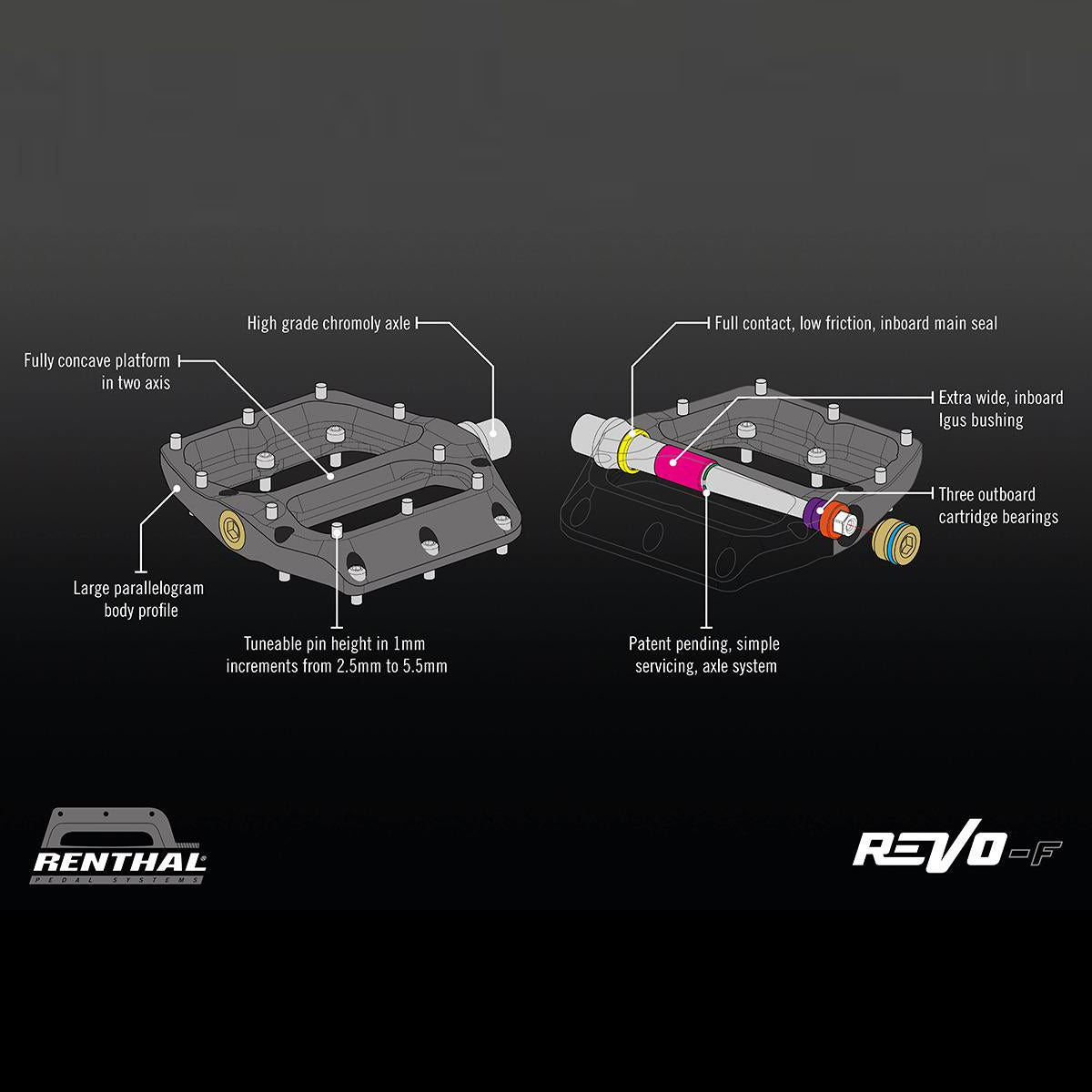

  • Fully concave platform, in two axis, to give the highest level of support and control. The deep concave profile is achieved whilst still retaining a thin outer depth of just 18mm.
  • Revo-F pedals come factory fitted with ten 5.5mm height pins per side. Supplied with the pedals are a further forty pins and forty washers. Using a combination of these, the pin height can be adjust from 5.5mm to either 4.5mm, 3.5mm or 2.5mm, making them one of the most tuneable pedals available.
  • The patent pending axle system, features in the Revo-F allows full home servicing, using standard tools, found in anyone’s toolkit. All is required is a 6mm and 8mm hex-key, a standard 8mm socket, a torque wrench and a mallet.
  • Inboard, the Revo-F spins on an extra-wide Igus bush, sealed with a full-contact wiper seal. Outboard there are three cartridge bearings. Two smaller bearings and a larger bearing in the outer most location, sealed with an end-cap O-ring.
  • The main body of the Revo-F is made from forged, 6061 aluminium. Then fully CNC machined, to remove as much material as possible. To improve rock strike performance, the front face of the pedal has been kept smooth, without any cut-outs. This allows the pedal to slide over rocks, rather than grabbing at them.
  • Concave platform. L-100mm x W-104mm
  • Ten pins per side
  • Three outboard cartridge bearings
  • Extra wide inboard IGUS bush
  • Fully sealed - Inboard full contact lip-seal. Outer O-ring seal
  • High grade chromoly axle
  • 488g
Product Code PD10001-001-01
Other products by Renthal
$298.00
RRP $339.00 | Save 12%
  Options Price RRP In
Store 		With
Supplier

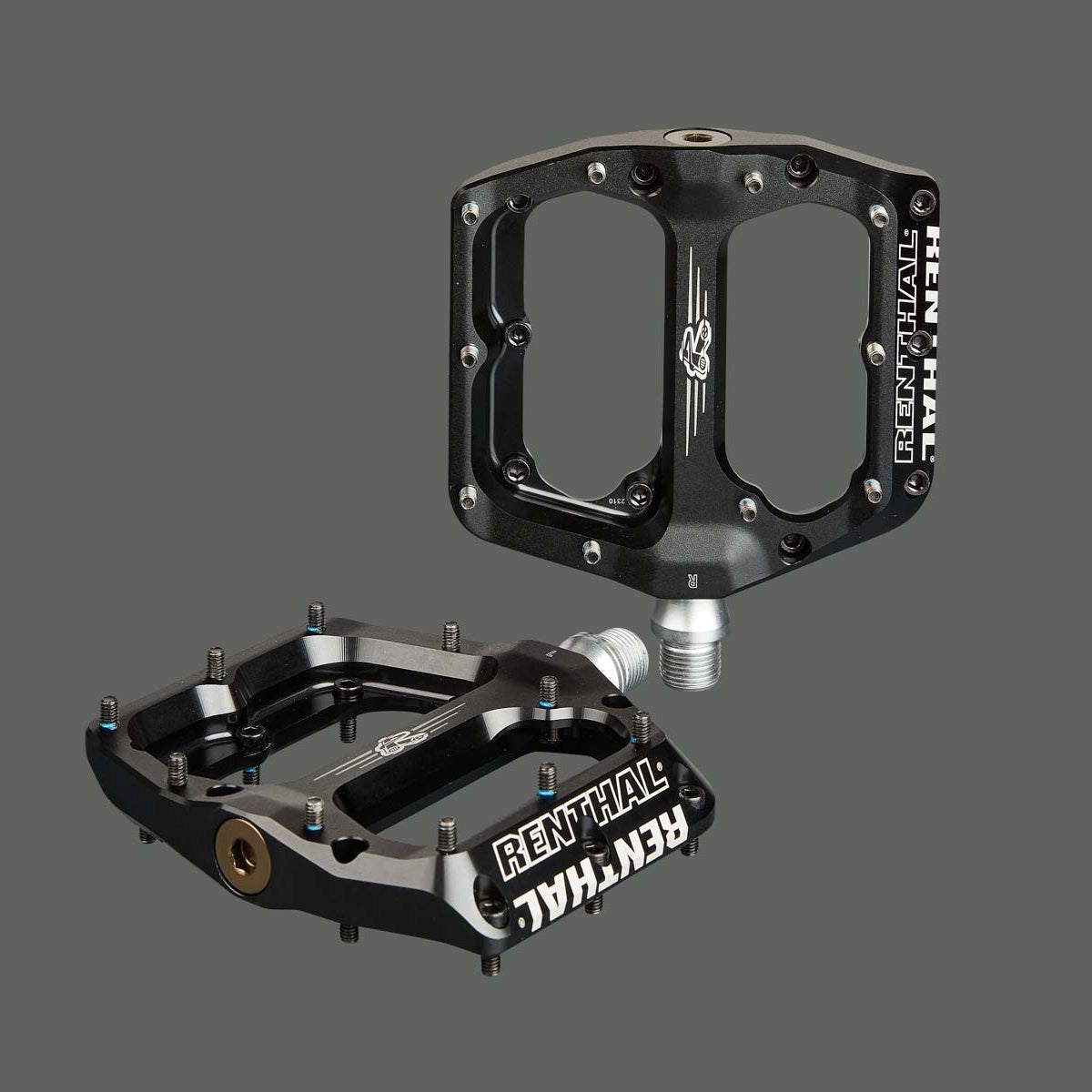

Black $298.00 $339.00 Out of stock
Gold $298.00 $339.00 In stock
